| Voltage: | 380V/50HZ Or Customized | Condition: | New |
|---|---|---|---|
| Warranty: | 1 Year | Working Table Size: | 2000*900mm |
| Three Axes Travel: | 1800/900/680mm | Spindle Rotation Speed: | 8000rpm |
| T Slot: | 5-22*165mm | ||
| High Light: | Part Processing CNC Milling Machine,Strong Cutting CNC Milling Machine,Mould processing cnc vertical mill |
||
Introduction:
Mould processing special processing center series product has high rigidity, high precision, high reliability, large torque characteristics.
Suitable for automobiles, motorcycles, aerospace, mechanical, electrical, instrumentation and other industries of valve, CAM, complex shape
of the surface of the model and the complex cavity and parts, such as processing and metal mold, plastic mold processing.
Specification:

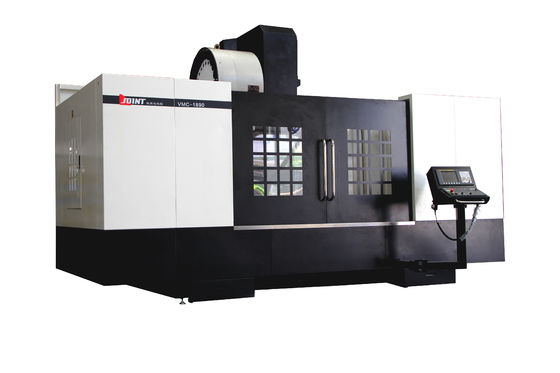

| Model | VMC1890P | |||
| Travel | X axis travel | mm | 1800 | |
| Y axis travel | mm | 900 | ||
| Z axis travel | mm | 680 | ||
| Distance between spindle and table | mm | 160-840 | ||
| Distance between spindle and column | mm | 950 | ||
| Table | Size | mm | 2000*900 | |
| Load | kg | 1600 | ||
| T slot size | mm | 5-22*165 | ||
| Spindle | Taper | BT50 | ||
| Rotation speed | r/min | 8000Rpm | ||
| Three axis | Cutting feed | m/min | 8 | |
| Rapid feed | m/min | 12*12*10 | ||
| Accuracy | Positioning accuracy (X/Y/Z) | mm | 0.008/0.008/0.008 | |
| Other | Dimension | mm | 4860*4300*3600 | |
| Weight | kg | 1600 | ||
Customer Case:
Customization:
1. model: VMC-1890P
2. Customization:
1) high rigidity fuselage constructure, insuring machine strong cutting requirement
2) High precision and high stability. Bearing, coupling, spindle, ball screw, tool magazine and knife cylinder these key parts adopt Germany, Japan, and Taiwan brand.
3) Coolant through spindle , 10000-15000 rpm direct connection spindle.
