Product Details:
Payment & Shipping Terms:
|
| Table Size: | 1000*550mm | Machining: | Parts Machining |
|---|---|---|---|
| Rotation Speed: | 10000/12000/15000rpm | X/Y/Z Axis Travel: | 800/540/540Mmm |
| Three Axis Type: | Linear Guide Way | Distance Between Spindle And Work Table: | 140-690mm |
| Three Axes Rapid Moving Speed: | 48/48/48m/min | Cutting Feed: | 15m/min |
Production characteristics:
1. Improve its structure according to force analysis: Widen spindle box and column linear guidway mounting surface, Z axis increased to 6 slides, base and column with special big span structure, enhancing machine rigidity fully.
2. Oil pipe line design optimization, solenoid valve, oil pump, and others centralized visual design. Customers can see them all through transparent window in one time. Check all fast in one time if something wrong.
3. Equipped with high flow chip flushing system, multi-filter structure of water tank, meet requirements of high speed of chip removal. Reduced failure caused by pump blockage.
4. With characteristics of high feeding speed, high processing rotation speed.

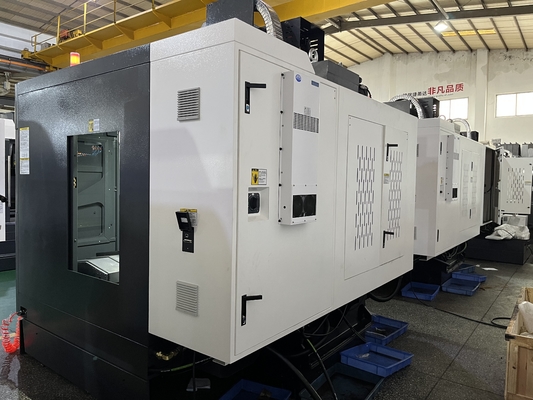

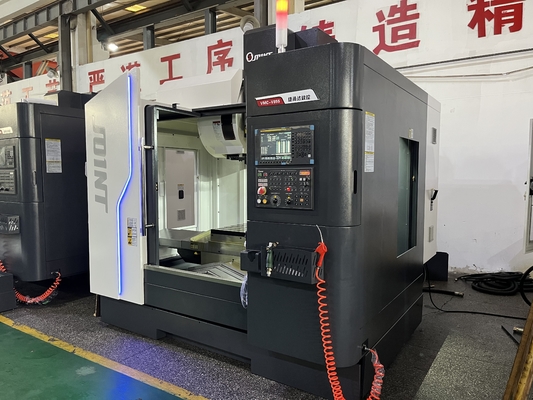

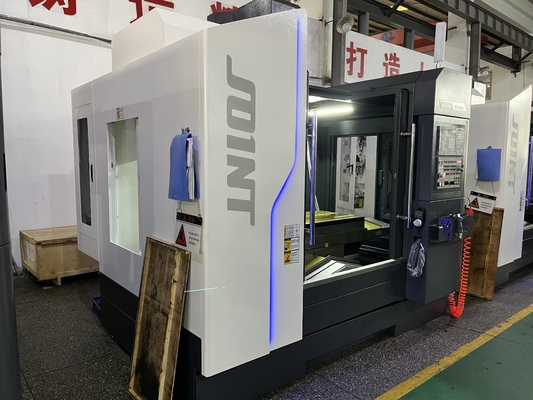

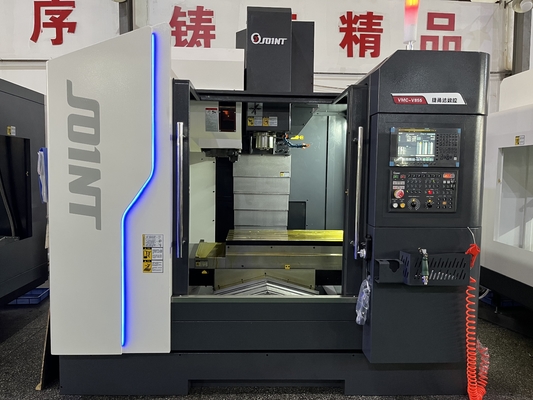

Why we design VMC-V855
1. First, rigidity is greatly enhanced. Some V855, V856 models on the market, that is, the rigidity is increased, just widened the base, the rigidity is improved, but not very much, because from the force analysis, the biggest force is the spindle box and column, and finally to conduct to the end seat. So our V855 is according to the force analysis and improvement of the structure of the spindle box (see video) on the fuselage widened, and the pillar is shortened, pillar line rail mounting surface widening, Z axis increased to 6 sliders, column on both sides of the widening, increase the knife library brackets, on both sides of the balance, it is adopted the design of high precision mould machine V85P, base also widened, The rigidity of the machine was increased across the board. The structure of V855 can withstand the inertia generated by accelerated processing speed, in the machine tool fast feed, the overall dynamic response characteristics are higher, compared to THE V85 model, the cutting speed can be accelerated, the cutting effect will be better, but also can easily process steel parts. Now we use A ф 16 milling cutter, processing 45 steel, feed speed 3500, speed 4000, depth 50 wire, machine tool without vibration, very smooth, there is no vibration sound. Let's see the processing effect, knife lines is neat, smooth and bright.
2. In cooperation with Fanuc, we have developed an independent single page to display the alarm and maintenance functions of oil pumps and refueling machine tools. You can operate on one page by clicking directly without switching to different pages, which speeds up the operation efficiency of users.
3. There are 10 grade parameters in the system. Users can choose different grades according to their own processing requirements to get different processing effects. For example, rough machining, choosing level 10, can reach high processing efficiency. When you just need low finishing, you can choose level 5, processing speed will become slower for high finishing processing. We also set up a professional packet storage module for this machine additionally. If customers have special and regular processing requirements, its adjusted parameterss can be stored in the module, then at next time customers can directly use this module when processing similar parts, no need to adjust again. This storage module is our unique technology. Similar products currently on the market do not have this technology in China.
Specification:
| Model | V855 | |||
| Travel | X axis travel | mm | 800 | |
| Y axis travel | mm | 540 | ||
| Z axis travel | mm | 540 | ||
| Distance between spindle and table | mm | 140-690 | ||
| Distance between spindle and column | mm | 590 | ||
| Table | Size | mm | 1000*500 | |
| Load | kg | 500 | ||
| T slot size | mm | 3-18-130 | ||
| Spindle | Taper | BT40 | ||
| Installment diameter | mm | Φ150 | ||
| Rotation speed | r/min | Belt 50-10000/Direct 12000/15000 | ||
| Three axis | X,Y axis motor output torque | N.M | 13.7/11 | |
| Z axis motor output torque | N.M | 22.5/20 | ||
| X,Y axis motor rate | KW | 2.0/1.8 | ||
| Z axis motor rate | KW | 3/3 | ||
| Cutting feed | m/min | 15 | ||
| Rapid feed | m/min | 48/48/48 | ||
| Arm type Tool magazine | Tool capacity | T | 24 | |
| Maximum diameter/ length/ weight of tool | mm/mm/kg | 80/200/8 | ||
| Maximum diameter of tool (no tool) | mm | 150 | ||
| Tool change time (T-T) | s | 2.8 | ||
| Accuracy | Positioning accuracy (X/Y/Z) | mm | 0.006/0.006/0.006 | |
| Repeat positioning accuracy (X/Y/Z) | mm | 0.005/0.005/0.005 | ||
| Other | Dimension | mm | 2450*2535*2660 | |
| Power capacity | KVA | 15 | ||
| Weight | kg | 5200 | ||
|
Standard accessories: 1. Mitsubishi/ Fanuc controller system |
Optional accessories: 1. Screw type conveyor |
Application Industry:
Overview:
Package:
1. Our wooden pallet (wooden case) would fumigate and can get fumigation certificate.
2. Our package will be very careful for the parts, accessories for the machine.
Every part, accessory that need to be removed from machine, we will use pearl cotton and transparent film to pack them.
And make a note of them.
