|Name:||Vertical CNC Machine VMC850B||Table:||1050*500mm|
|X Axis Travel:||800mm||Y Axis Travel:||500mm|
|Z Axis Travel:||550mm||Rapid Feed:||15/15/12 M/min|
|Max Load:||600kg||Net Weight:||5000kg|
computerized milling machine,
vmc cnc milling machine

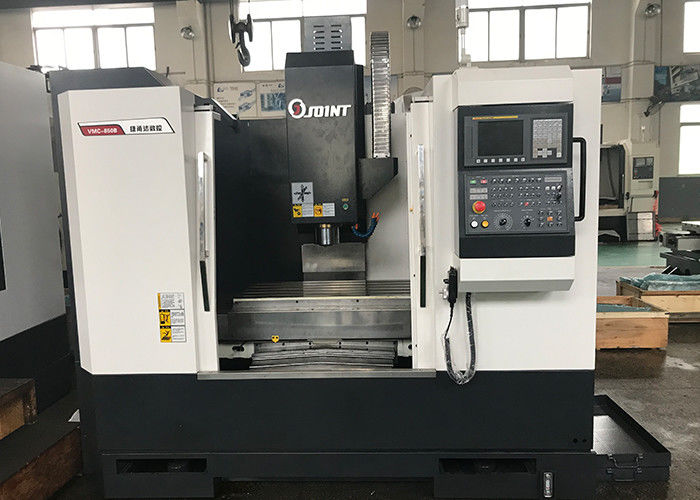

VMC850B Vertical CNC Machine Center 800mm X Axis Travel 600kg Load
1. Vertical machining center VMC850B is with Taiwan high speed spindle 8000rpm.
2. VMC850B is with box guideways on X,Y,Z axes with high stability, rapid speed is 15/15/12 m/min.
3. The whole machine is with closed protection and electric cabinet, which assures the safety of worker and lustration of environment.
4. The machine is with taiwan Hiwin/PMI ballscrew, FAG/NSK bearing.
1. Good rigidity: guide of a widened span for the machine body with high rigidity and great ability of shock absorption.
2. High efficiency: equipped with a tool magazine featuring swift automatic tool changing and rigidity tapping.
3. Larde travel: larger travels in all three directions than those of the same specifications in the market.
4. Optimal configuration: imported major outsourcing parts and components including the CNC system, spindle unit, tool magazine, ball screw, bearings, etc.
5. New structure: spindle with floating tool stroke and screw pre-tensioned to ensure long service life and steady accuracy.
Specification Of Vertical machine center VMC850B
|Distance between spindle and table||mm||105-655|
|Working table||Table size||mm||1050*500|
|Max. Load of table||Kg||600|
|Positioning accuracy||X/Y/Z axis||mm||0.008/0.008/0.008|
|Repeated positioning accuracy||X/Y/Z axis||mm||0.007/0.007/0.007|
|Spindle||Spindle rotation speed||Rpm||8000|
|Rivet model||BT40 45°|
|Rapid feed||X/Y/Z axis||m/min||15/15/12|
|Cutting feed||X/Y/Z axis||m/min||8|
|Tool magazine||Umbrella type||Size||Tools||20|
|Too changing time (T-T)||Sec||6|
|Max. diameter/ length/weight of tool||mm||100/200/8|
|Max tool diameter (no tool adjacent)||mm||180|
|Tool changing time (T-T)||sec||3.5s|
|Max. diameter/ /length/weight of tool||mm||80/200/8|
|Max tool diameter (no tool adjacent)||mm||150|
|Total capacity of electric||KVA||15|
|Weight of machine||
Fanuc Controller system
Full enclosed cover
Spindle encoder position system
Three axis inner encoder feedback system
Auto lubrication system
RS 232 Interface
RS232 Interface +working light
Tool and tool box
Siemens controller or other controller system
Spindle oil coolant
Umbrella type tool magazine
Arm type tool magazine
Screw type auto conveyor
Chain type tool magazine
4 Axis rotary table
Ring spray spindle
