Product Details:
Payment & Shipping Terms:
|
| Name: | V85P CNC Machining Center | X Axis Travel: | 800mm |
|---|---|---|---|
| Y Axis Travel: | 500mm | Z Axis Travel: | 500mm |
| T Slot: | 5-18-100 | Rivet Type: | BT40 45° |
| Spindle Diameter: | 140mm | Motor: | Fanuc β Motor |
| High Light: | computerized milling machine,vmc cnc milling machine |
||

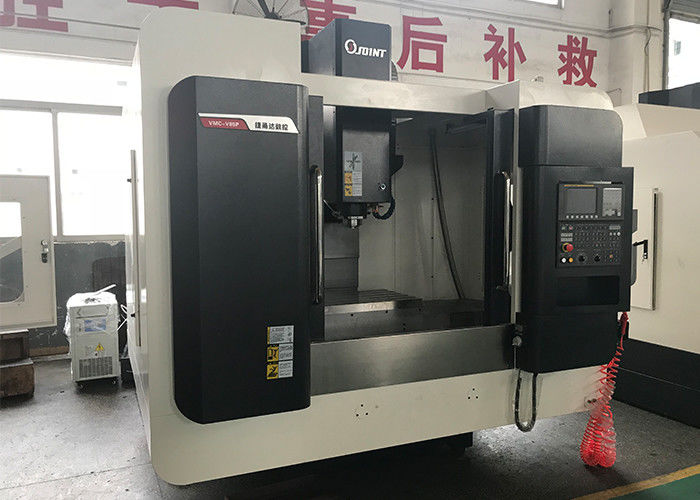

BT40 45° 140mm Spindle Vertical Machining Center Fanuc β Motor 0i-MF System
Machine description
1. V85P is configured with FANUC Oi-MF(5) controller system, Fanuc β servo motor, spindle oil coolant, heat exchanger, 24 tools ATC.
2. Fast rapid feed for x/y/z axis 36m/min, high efficiency for processing parts.
3. Optimized machine structure making its better performance in rigigity, suitable for making moulds.
4. It is widely applied in 3C products, automatic production line parts, electronics, machinery, car, plane, aerospace, shipbuilding and national defense etc.
Machine precision
| Test item | Test result |
| X/Y/Z axis reverse gap | 0.002/0.002/0.001 |
| Positioning accuracy | 0.006/0.007/0.006 |
| Repeated positioning accuracy | 0.006/0.005/0.005 |
| Squareness | 0.008 |
| Roundness | 0.005 |
Specification Of Vertical machine center V85P
| Model | V85P |
| Table size | 1000*550mm |
| X axis Travel | 800mm |
| Y aixs Travel | 500mm |
| Z axis Travel | 500mm |
| Distance between spindle and table | 160-660mm |
| Distance between spindle and column | 524mm |
| Spindle rotation speed | 10000 /Direct connection 12000/15000rpm |
| Spindle motor | 7.5kw |
| Work table T slot | 5-18*100 |
| X/Y/Z axis ball screw size | 3616 |
| ATC type | 24too arm type |
| Time of changing tool | 2.5m/min |
| Rapid feed | 48*48*48m/min |
| X/Y/Z axis motor | 12/12/20NM |
| Max cutting feed | 10m/min |
| Min set moving unit | 0.001mm |
| Dimension | 2650*2900*2850mm |
| Net weight | 5000kgs |
| Max load of table | 600kgs |
Standard Accessories
Fanuc Controller system
10000/12000/15000Rpm spindle
24tools arm type tool magazine
Spindle oil cooler
Heat exchanger
Full enclosed cover
Spindle encoder position system
Three axis inner encoder feedback system
Auto lubrication system
Pneumatic system
RS 232 Interface
Operation unit
RS232 Interface +working light
Tool and tool box
