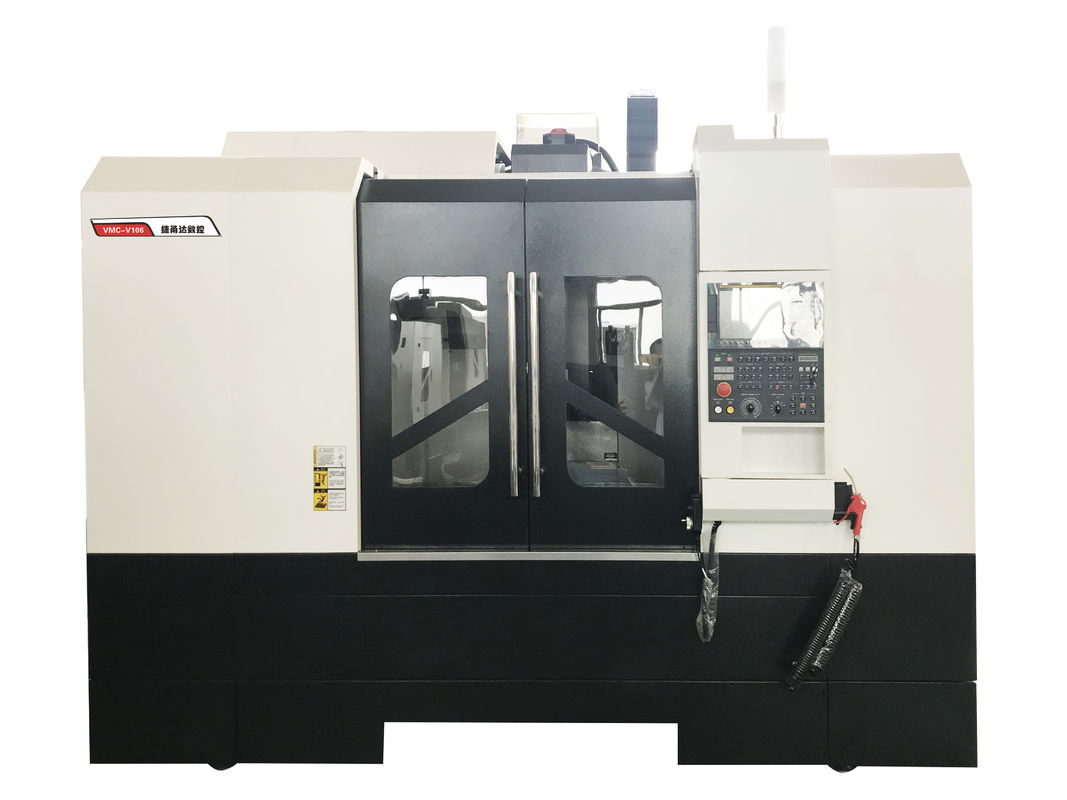

20KVA 11kw Vertical CNC Machining Center CNC Milling Machine 8000rpm VMC-V106

large.img.alt
small.img.alt

Large Image :  20KVA 11kw Vertical CNC Machining Center CNC Milling Machine 8000rpm VMC-V106

Product Details:
Place of Origin: CHINA
Brand Name: JOINT
Certification: ISO 9001:2015
Model Number: VMC-V106
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: NEGOTIATION
Packaging Details: WOODEN PALLTES / WOODEN CASE
Delivery Time: NEGOTIATION
Payment Terms: L/C, T/T
Supply Ability: 1000 SETS/YEAR
Detailed Product Description
Woking Table Size: 1300*600 Spindle Rotation Speed: Belt Spindle 8000rpm/Direct Connect Spindle 12000rpm
Spindle Motor Rate: 11kw X/Y/Z Axis Travel: 1000/600/600
T Slot: 5-18*130 Three Axis: Linear Guideway
High Light:

11kw Vertical CNC Machining Center

,

20KVA Vertical CNC Machining Center

,

Vertical CNC Milling Machine 8000rpm

Introduction:



This V series CNC machine center has the characteristics of fast feed speed and high rotation speed, so it is suitable for batch parts with many tools, complicated processing and multiple processes. Mainly processing cabinets, complex curved surfaces, heterosexual parts, disks, sleeves, plate parts, etc., are widely used in electronics, machinery and automotive, automation, medical, national defense and other fields.



Product Characteristics:

1. Three axis adopt ball linear guide way or roller linear guide way, rapid feed:48m/min

2. The direct-connected short nose high-speed spindle can improve efficiency, reduce tool wear and maximize the transmission efficiency of the spindle motor. Improving processing accuracy and extending spindle life.

3. Equipped the rear chip conveyor with a large flow chip removal system, which can meet the requirements of rapid chip removal.





Specification:



Model V106
Travel X axis travel mm 1000
Y axis travel mm 600
Z axis travel mm 550
Distance between spindle and table mm 120-670
Distance between spindle and column mm 640
Table Size mm 1100*500
Load kg 450
T slot size mm 5-18-100
Spindle Taper   BT40
Installment diameter mm Φ150
Rotation speed r/min Belt 50-10000/Direct 12000
Three axis X,Y,Z axis motor output torque N.M 20/20/20 (FANUC β)
X,Y,Z axis motor rate KW 3/3/3(FANUC β)
Cutting feed m/min 15
Rapid feed m/min 48/48/40
Arm type Tool magazine Tool capacity T 24
Maximum diameter/ length/ weight of tool mm/mm/kg 80/200/8
Maximum diameter of tool (no tool) mm 150
Tool change time (T-T) s 2.8
Accuracy Positioning accuracy (X/Y/Z) mm 0.008/0.008/0.008
Repeat positioning accuracy (X/Y/Z) mm 0.006/0.006/0.006
Other Dimension mm 2750*2050*2240
Power capacity KVA 20
Weight kg 4800



Standard accessories:
1. Mitsubishi/ Fanuc controller system with AICC2 Function
V65 belt connectin with 10000rpm spindle
2. Fully enclosed cover
3. Pneumatic system
4. Anto lubrication system
5. Work piece coolant system
6. Heat exchange
7. Air gun
8. Water gun
9. Spindle oil coolant
10. 24T Arm type tool magazine
11. Rear flishing
12. Hand wheel
13. RS232 Interface
14. Alarming light
15. Working light
16. Guide way cover
17. Technical documents
18. Operation manual

Optional accessories:
1. Screw type conveyor
2. Chain type conveyor
3. 4 axis Rotary table
4. Coolant through spindle (CTS)
5. Spindle rotation speed can be direct connection with 12000rpm.







Application Industry: This series can make marking machine front plat;  medical machinery accessories; tool mould; auto part, etc.

                 20KVA 11kw Vertical CNC Machining Center CNC Milling Machine 8000rpm VMC-V106 0







Overview:



                      20KVA 11kw Vertical CNC Machining Center CNC Milling Machine 8000rpm VMC-V106 1









Package: ​We have professional logistic team to load and unload the machine, with Aerical crane, forklift.

                           20KVA 11kw Vertical CNC Machining Center CNC Milling Machine 8000rpm VMC-V106 2





20KVA 11kw Vertical CNC Machining Center CNC Milling Machine 8000rpm VMC-V106 3
