|Name:||Vertical Machine Center||X Axis Travel:||800mm|
|Y Axis Travel:||500mm||Z Axis Travel:||550mm|
|Rapid Feed:||15/15/12 M/min||Cutting Feed:||8 M/min|
|Max Load:||600kg||Net Weight:||5000kg|

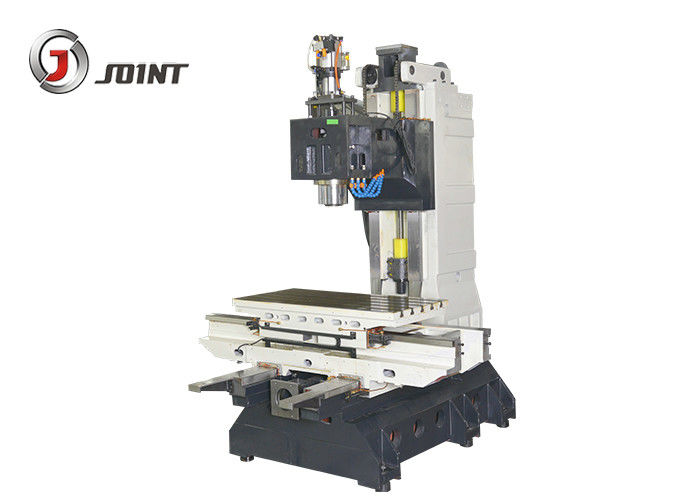

Mould Making Vertical Machine Center X Axis Travel 800mm VMC850B 600kg Load
1. Good rigidity: guide of a widened span for the machine body with high rigidity and great ability of shock absorption.
2. High efficiency: can be equipped with a tool magazine featuring swift automatic tool changing and rigidity tapping.
3. Larde travel: larger travels in all three directions than those of the same specifications in the market.
4. Optimal configuration: imported major outsourcing parts and components including the CNC system, spindle unit, tool magazine, ball screw, bearings, etc.
5. New structure: spindle with floating tool stroke and screw pre-tensioned to ensure long service life and steady accuracy.
1. The machine tool uses the traditional O-type layout, with a compact, neat appearance and less occupied area.
2. The bed seat, vertical column, tool slide and other components are all adopt symmetric thermal and box type dense reinforcement grid stiffened ribbon design, shaped with resin sand, featuring high precision and stability as well as good rigidity.
3. X,Y,Z three-axis have large travel, especially suitable for the special needs of the mold making industry to increase stroke.
Specification Of Vertical machine center VMC850B
|Distance between spindle and table||mm||105-655|
|Working table||Table size||mm||1050*500|
|Max. Load of table||Kg||600|
|Positioning accuracy||X/Y/Z axis||mm||0.008/0.008/0.008|
|Repeated positioning accuracy||X/Y/Z axis||mm||0.007/0.007/0.007|
|Spindle||Spindle rotation speed||Rpm||8000|
|Rivet model||BT40 45°|
|Rapid feed||X/Y/Z axis||m/min||15/15/12|
|Cutting feed||X/Y/Z axis||m/min||8|
|Tool magazine||Umbrella type||Size||Tools||20|
|Too changing time (T-T)||Sec||6|
|Max. diameter/ length/weight of tool||mm||100/200/8|
|Max tool diameter (no tool adjacent)||mm||180|
|Tool changing time (T-T)||sec||3.5s|
|Max. diameter/ /length/weight of tool||mm||80/200/8|
|Max tool diameter (no tool adjacent)||mm||150|
|Total capacity of electric||KVA||15|
|Weight of machine||
Fanuc Controller system
Full enclosed cover
Spindle encoder position system
Three axis inner encoder feedback system
Auto lubrication system
RS 232 Interface
RS232 Interface +working light
Tool and tool box
Siemens controller or other controller system
Spindle oil coolant
Umbrella type tool magazine
Arm type tool magazine
Screw type auto conveyor
Chain type tool magazine
4 Axis rotary table
Ring spray spindle
