| Name: | High Speed High Precision VMC | Travel: | 800*600*600mm |
|---|---|---|---|
| Table Size: | 900*480mm | Spindle: | BT40 10000RPM |
| T Slot Of Table: | 4-18*100 | Rapid Feed: | 48/48/48 M/min |
| Max Cutting Feed: | 15 M/min | Positioning Accuracy: | 0.006mm |
| High Light: | computerized milling machine,vmc cnc milling machine |
||

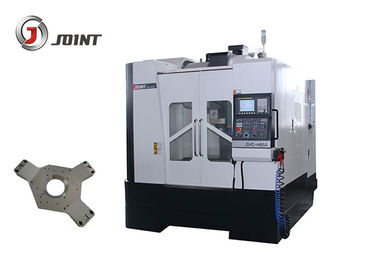

High Speed High precision Vertical Machine Center BT40 10000rpm Spindle
Quick detail:
1. Extra wide machine body and column base design, high precision and high strength cross casting to ensure high rigidity and quick dynamic responsiveness of the machine, and also significantly improve machining accuracy.
2. Adopt vertical tool magazine installation design to ensure the whole machine structure balance, and to increase and maintain dynamic accuracy.
3. Special spindle case design, suits high rigidity cutting at high speed operation. H series are up to 30% more efficient than other standard machine center.
4. H86A adopts co-action tool magazine, reduces half of tools changing time.
5. H87 is a customized model for LED screen manufacturing industry.
Company advantage:
1. Machine manufacturer since 1995 with export experience since 2002.
2. 87000 square meters workshop with strong engineer team.
3. CE ISO9001:2015 Certificate
4. Provide intergrated design of molding and parts processing production line
Specification Of Vertical machine center H86
| Model | Unit | H86 | ||
| Travel | X axis | mm | 800 | |
| Y axis | mm | 600 | ||
| Z axis | mm | 600 | ||
| Distance between spindle and table | mm | 120-720 | ||
| Working table | Table size | mm | 900*480 | |
| Max. Load of table | Kg | 500 | ||
| T slot | Pcs－mm-mm | 4-18-100 | ||
| Positioning accuracy | X/Y/Z axis | mm | 0.006/0.006/0.006 | |
| Repeated positioning accuracy | X/Y/Z axis | mm | 0.005/0.005/0.005 | |
| Spindle | Spindle rotation speed | Rpm | 8000 | |
| Spindle taper | BT40 | |||
| Diameter | mm | Φ150 | ||
| Rivet model | BT40 45° | |||
| Rapid feed | X/Y/Z axis | m/min | 48/48/48 | |
| Cutting feed | X/Y/Z axis | m/min | 12 | |
| Tool magazine | Arm type | Size | Tools | 24 |
| Tool changing time (T-T) | sec | 2.5s | ||
| Max. diameter/ /length/weight of tool | mm | 80/200/8 | ||
| Max tool diameter (no tool adjacent) | mm | 150 | ||
| Total capacity of electric | KVA | 15 | ||
| Weight of machine |
Kg
|
5500 | ||
| Dimension | mm | 2300*3145*2800 | ||
Standard Accessories:
Fanuc/Mitsubishi Controller system
10000rpm direct drive spindle, 24 tools arm type tool magazine, heat exchanger, spindle oil coolant
Full enclosed cover
Spindle encoder position system
Three axis inner encoder feedback system
Auto lubrication system
Pneumatic system
RS 232 Interface
Operation unit
Working light
Tool and tool box
Optional accessories:
Siemens controller or other controller system
Screw type auto conveyor
Chain type tool magazine
4 Axis rotary table
Ring spray spindle
