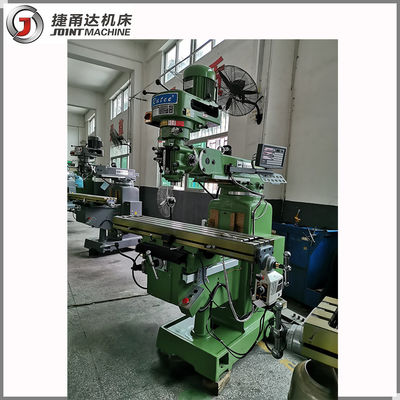

4540rpm DRO Vertical Turret Milling Machine 0.005mm Tolerance

large.img.alt
large.img.alt
video play

Large Image :  4540rpm DRO Vertical Turret Milling Machine 0.005mm Tolerance

Product Details:
Place of Origin: CHINA
Brand Name: RATEE
Certification: ISO 9001:2015
Model Number: 4E
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: NEGOTIATION
Packaging Details: WOODEN PALLTES / WOODEN CASE
Delivery Time: NEGOTIATION
Payment Terms: TT/LC
Supply Ability: 1000 SETS/YEAR
Detailed Product Description
Table Size: 1270*254*90 X/Y/Z Axis Travel: 900/410/325
Max Distance From Spindle Nose To Table: 400 Spindle Rotation Speed: 66-4540rpm(50HZ)
OEM Service: Provide DRO: Optional
Dimension: 1500*1700*2150 Milling Head: R8/3HP
High Light:

DRO Vertical Turret Milling Machine

,

4540rpm Turret Milling Machine

,

0.005mm Tolerance Horizontal Milling Machine

Product Characteristics:



1. High cost performance with Taiwan parts assembled in China with strict inner standard



2. Taiwan parts assembled in China



3. Spindle tolerance: 0.005mm





Parameters Sheet:



Model 4E
Table size mm 1270*254*90
Travel (Longitude X) mm 900
Travel (Crossward Y) mm 410
Travel (Vertical Z) mm 325
Travel of spindle quill mm 127
Max distance from spindle nose and table mm 400
Spindle Rotation speed Step speed milling head 50HZ 66-4540
60HZ 80-5440
Variable speed milling head 50HZ 40-3125
60HZ 503750
Inverter speed milling head 50HZ 0-4200
60HZ 0-4200
Spindle taper R8(NT30)
Spindle rated motor 3HP
Tilt angle (Forward and backward) ±45°
Tilt angle (Left and right) ±90°
Dimension mm 1500*1700*2150
Net weight kg 1400





Standard Accessories:



1. Working light



2. Way cover



3. R8/3HP spindle step speed milling head



4. R8 inch draw bar



5. Technical document



6. Accompanied toolbox





Optional accessories:



1. R8 (7 pcs) milling chuck



2. M12 clamping kits



3. 6' vise



4.  Power feed



5. 2 axis/3 axis DRO





Overview:

4540rpm DRO Vertical Turret Milling Machine 0.005mm Tolerance 04540rpm DRO Vertical Turret Milling Machine 0.005mm Tolerance 1



Package:

4540rpm DRO Vertical Turret Milling Machine 0.005mm Tolerance 2

4540rpm DRO Vertical Turret Milling Machine 0.005mm Tolerance 3

4540rpm DRO Vertical Turret Milling Machine 0.005mm Tolerance 4

4540rpm DRO Vertical Turret Milling Machine 0.005mm Tolerance 5

4540rpm DRO Vertical Turret Milling Machine 0.005mm Tolerance 6
