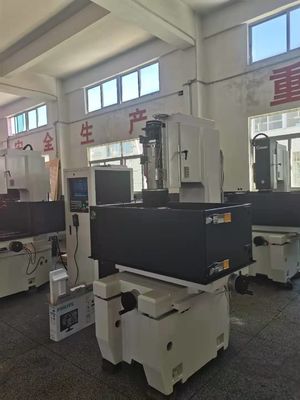

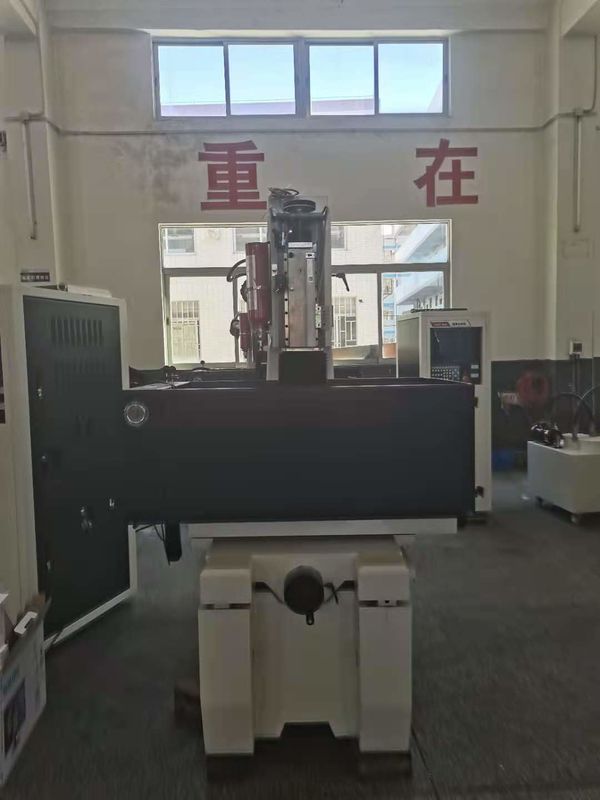

5KVA Electrical Discharge Vertical Machine Erosion Die Mould

5KVA Electrical Discharge Vertical Machine Erosion Die Mould
5KVA Electrical Discharge Vertical Machine Erosion Die Mould 5KVA Electrical Discharge Vertical Machine Erosion Die Mould

Large Image :  5KVA Electrical Discharge Vertical Machine Erosion Die Mould

Product Details:

Place of Origin: CHINA
Brand Name: JOINT
Certification: ISO 9001:2015
Model Number: ZNC-450

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: NEGOTIATION
Packaging Details: WOODEN PALLTES / WOODEN CASE
Delivery Time: NEGOTIATION
Payment Terms: TT/LC/DA/DP
Supply Ability: 1000 SETS/YEAR
Detailed Product Description
Table Size: 700*400mm X/Y/Z Axis Travel: 455*360*200 Mm
Electrode Head: 280mm Max Load Of Table: 1200kg
Net Weight: 1500kg Consumption Of Electrode Head: Less Than 0.2
High Light:

5KVA Electrical Discharge Vertical Machine

,

360mm²/min Electrical Discharge Vertical Machine

,

Erosion Die Mould ZNC Machine

ZNC-450 Electrical discharge vertical machine erosion die mould easy operation





5KVA Electrical Discharge Vertical Machine Erosion Die Mould 0







1. Z-axis adopts Swiss linear slide rails or those of equivalent level, uses Japanese



   NSK precision bearing, ensuring accuracy and durability.


2. X and Y axis adopt imported or equivalent ball screws, Z axis uses plastic nut.


3. Original Japan-made SANYO servo motors


4. W-axis motoreducer(1:25 60W or 90 W)


5. Taiwan-made Grundfos pumping motors


6. Taiwan quartz lamp, fire extinguisher, level switch, sealer, hydraulic, high-pressure oil pump, pressure gauge, etc.


7. Taiwan precision hand wheel, dial series


8. Imported strainer(2 pieces)


9. Three-axis precision optical ruler (1μ / 5 μ)



EDM machine

Model ZNC450
Size of oil container  620*860*1850mm
Table size 700*400mm
X axis travel 455mm
Y axis travel 360mm
Z axis travel 200mm
Electrode head 280mm
Max distance from the electrode head to table 480mm
Max load of electrode head 120kg
Max load of table 1200kg
Dimension 2050*2530*2400mm
Net weight 1500kg
Filter container cube 460L



Electric cabinet

Model ZNC Machine
Control mode and axis No. NC with close circuit/single z axis control
Min setting value 0.005(0.001)mm
Max setting value 9999.995(9999.9999)mm
Coordination system INC  ABS
Screen 15'' FTT
Control system Industrial PC
Moving velocity of controller 0.005mm per unit*1, *5, *10
Procedure in store 0-999 groups
Max current for processing 50A
Input rated power 5KVA
Max cutting processing speed 360mm²/min
Consumption of electrode head <0.2%
Best surface rough 0.25
Dimension 620*860*1850mm
Net weight 210kg





5KVA Electrical Discharge Vertical Machine Erosion Die Mould 1

 5KVA Electrical Discharge Vertical Machine Erosion Die Mould 2

5KVA Electrical Discharge Vertical Machine Erosion Die Mould 3

5KVA Electrical Discharge Vertical Machine Erosion Die Mould 45KVA Electrical Discharge Vertical Machine Erosion Die Mould 5

5KVA Electrical Discharge Vertical Machine Erosion Die Mould 6



5KVA Electrical Discharge Vertical Machine Erosion Die Mould 7
