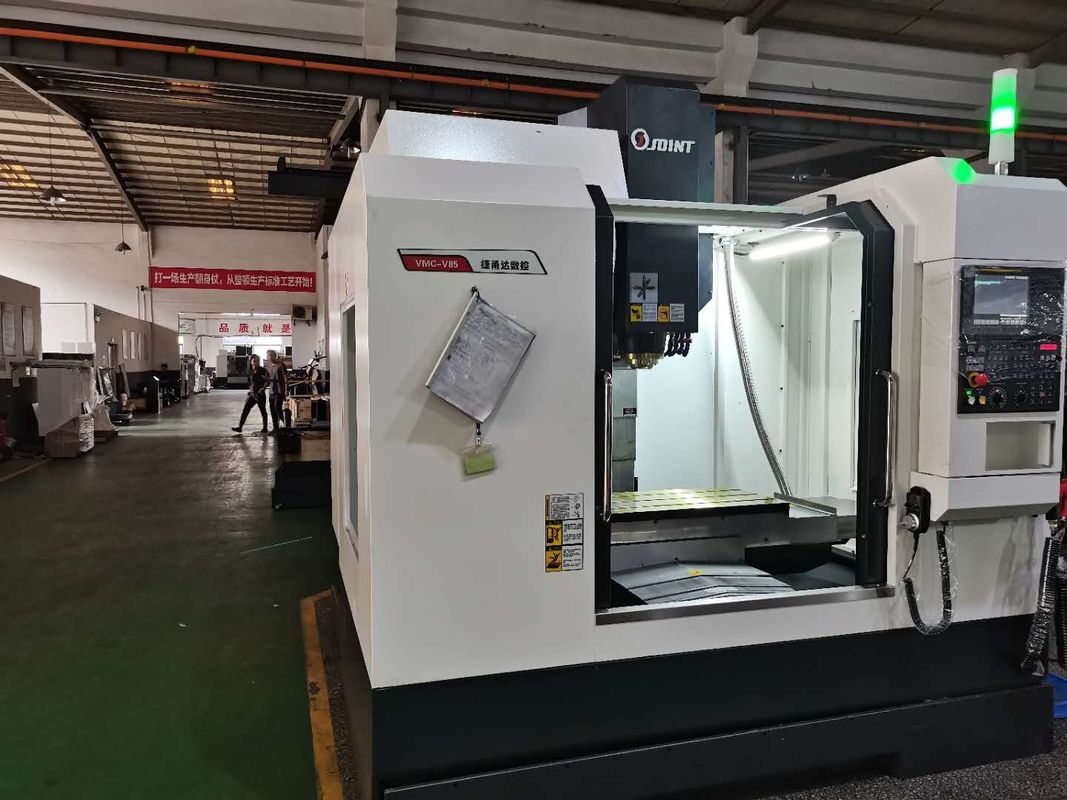

7.5Kw 4 Axis Rotary 18m/Min Feed CNC Machining Center

7.5Kw 4 Axis Rotary 18m/Min Feed CNC Machining Center
7.5Kw 4 Axis Rotary 18m/Min Feed CNC Machining Center  7.5Kw 4 Axis Rotary 18m/Min Feed CNC Machining Center

Large Image :  7.5Kw 4 Axis Rotary 18m/Min Feed CNC Machining Center

Product Details:

Place of Origin: CHINA
Brand Name: JOINT
Certification: ISO 9001:2015
Model Number: VMC857L

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: NEGOTIATION
Packaging Details: WOODEN PALLTES / WOODEN CASE
Delivery Time: NEGOTIATION
Payment Terms: TT/LC/DA/DP
Supply Ability: 1000 SETS/YEAR
Detailed Product Description
Travel: 800*550*700mm Distance Between Spindle And Table: 110-810mm
Spindle Speed: 8000rpm Spindle: 7.5kw BT40 45°
Rapid Feed: 24/24/18m/min Max Load: 500kg
Positioning Accuracy: 0.006/0.006/0.008 Dimension: 2750*2380*2800mm
High Light:

7.5Kw CNC Machining Center

,

18m/Min Feed CNC Machining Center

,

4 Axis Rotary CNC Machine



7.5 Kw Power Full Enclosed CNC Machining Center 4 Axis Rotary



Product advantage:



1. The machine tool external protection of machine tool uses the full protection structure. It is convenient operation, safe and reliable, and nice shape.


2. Guide rail and ball screw of X, Y, Z direction are all use protection device to ensure that the screw and the guide is clean and accurate.


3. The spindle unit is high speed, high accuracy, high rigidity, with large load carrying capacity of axial and radial.


4. The feed of X, Y, Z direction adopts the inner loop preloading large-lead ball screw with double nut so it is of high feed speed.



5. Z axis matched with counterweight to keep balance, which ensure the spindle box running smoothly and stable.



6. This model is suitable for complex, multi-process, high precision requirements, the need for a variety of types of common machine tools and various tools, tooling, after several clamping and adjustment to complete the processing of parts with appropriate batch. Main processing box type, complex curved surface, special-shaped parts, plates, covers, plate parts. Widely used in electronics, machinery, automotive, aircraft, aerospace, shipping, national defense and other fields of products.



Specification Of Vertical machine center VMC857L



Model Unit VMC-857L
Travel X axis mm 800
Y axis mm 550
Z axis mm 700
Distance between spindle and table mm 110-810
Working table Table size mm 1000*520
Max. Load of table Kg 500
T slot Pcs-mm-mm 5-18-90
Positioning accuracy X/Y/Z axis mm 0.006/0.006/0.008
Repeated positioning accuracy X/Y/Z axis mm 0.005/0.005/0.007
Spindle Spindle rotation speed Rpm 8000
Spindle taper   BT40 45°
Diameter mm Φ150
Rapid feed X/Y/Z axis m/min 24/24/18
Cutting feed X/Y/Z axis m/min 10
Tool magazine Umbrella type Size Tools 20
Too changing time (T-T) s 6
Max. diameter/ length/weight of tool mm 100/150/8
Max tool diameter (no tool adjacent) mm 180
Arm type Size Tools 24
Tool changing time (T-T) s 2.8
Max. diameter/ /length/weight of tool mm 80/200/8
Max tool diameter (no tool adjacent) mm 150
Total capacity of electric KVA 15
Weight of machine

Kg



5400

Dimension

mm 2750*2380*2600



Standard Accessories:



Fanuc/Mitsubishi Controller system



Full enclosed cover



Spindle built-in encoder position system



Three axis inner encoder feedback system



Auto lubrication system



Pneumatic system



RS 232 Interface



Operation unit



Working light



Tool and tool box



Optional accessories:



Siemens controller or other controller system



Spindle oil coolant



Umbrella type tool magazine



Arm type tool magazine



Screw type auto conveyor



Chain type tool magazine



4 Axis rotary table



Ring spray spindle
