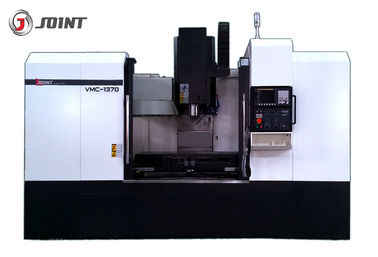

BT50 15KW High Precision Industrial CNC Milling Machine 1500*700mm Table Size

BT50 15KW High Precision Industrial CNC Milling Machine 1500*700mm Table Size
BT50 15KW High Precision Industrial CNC Milling Machine 1500*700mm Table Size BT50 15KW High Precision Industrial CNC Milling Machine 1500*700mm Table Size BT50 15KW High Precision Industrial CNC Milling Machine 1500*700mm Table Size

Large Image :  BT50 15KW High Precision Industrial CNC Milling Machine 1500*700mm Table Size

Product Details:
Place of Origin: CHINA
Brand Name: JOINT
Certification: ISO 9001:2015
Model Number: VMC-1370L
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: NEGOTIATION
Packaging Details: WOODEN PALLTES / WOODEN CASE
Delivery Time: NEGOTIATION
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 SETS/YEAR
Detailed Product Description
Model: VMC-1370L Travel: 1300*700*700mm
Distance Between Spindle And Table: 190-890mm Rapid Rate: 15/15/12 M/min
Table Size: 1500*700mm Cutting Feedrate: 10 M/min
Positioning Accuracy: 0.008 Spindle Taper: BT50
High Light:

vmc cnc milling machine

,

cnc moulding machine

BT50 15KW High Precision Industrial CNC Milling Machine 1500*700mm Table Size



BT50 15KW High Precision Industrial CNC Milling Machine 1500*700mm Table Size 0



L series machine is designed based on fast and rigid processing, which provides guarantee

for mass parts production, processing accuracy and maximum processing efficiency, Modular

combination of high efficient chip removal, rapid feed and high speed spindle functions to meet different customers’ personalized Choice. The key parts of machine adopt imported world’s top brands high quality parts.



BT50 15KW High Precision Industrial CNC Milling Machine 1500*700mm Table Size 1

BT50 15KW High Precision Industrial CNC Milling Machine 1500*700mm Table Size 2



◆ L series X/Y axis ball linear way ,Z axis box way



◆ High rigidity machine structure ,meet machine heavy cutting requirement under fast running. Coupling ,spindle bearing ,spindle ,ball screw, linear way ,tool magazine, unclamping cylinder and key parts are imported from top-level brands in Germany, Japan and Taiwan to ensure high quality and high precision of products



◆ Complete model from VMC650L-1890L,suitable for small to medium metal parts processing

Modular configuration, can provide customized options to meet different processing need,

with coolant through spindle, Ring spray type spindle,8000rpm belt type spindle.



◆ This processing center is mainly designed for parts processing, and speed up the machine

feed speed, at the same time, meet machine high rigidity cutting requirements



BT50 15KW High Precision Industrial CNC Milling Machine 1500*700mm Table Size 3



Model Unit VMC-1370L
Travel X axis mm 1300
Y axis mm 700
Z axis mm 700
Distance between spindle and table mm 190-890
Working table Table size mm 1500*700
Max. Load of table Kg 1000
T slot Pcs-mm-mm 5-18-135
Positioning accuracy X/Y/Z axis mm 0.008/0.008/0.008
Repeated positioning accuracy X/Y/Z axis mm 0.006/0.006/0.006
Spindle Spindle rotation speed rpm 8000
Spindle taper   BT50
Rivet model   BT50 45°
Rapid feed X/Y/Z axis m/min 15/15/12
Cutting feed X/Y/Z axis m/min 10
Tool magazine Umbrella type Size Tools 20
Too changing time (T-T) Sec 6
Max. diameter/ length/weight of tool mm 100/200/8
Max tool diameter (no tool adjacent) mm 180
Arm type Size Tools 24
Tool changing time (T-T) sec 3.5s
Max. diameter/ /length/weight of tool mm 80/200/8
Max tool diameter (no tool adjacent) mm 150
Weight of machine

Kg

10300
Dimension mm 3560*3300*3101



BT50 15KW High Precision Industrial CNC Milling Machine 1500*700mm Table Size 4



Fanuc MF(5) / Mitsubishi M80A/M80B

Controller system

Pneumatic system
Full enclosed cover RS 232 Interface
Spindle encoder position system Operation unit
Three axis inner encoder feedback system Working light
Auto lubrication system Tool and tool box



BT50 15KW High Precision Industrial CNC Milling Machine 1500*700mm Table Size 5



Siemens controller or other controller system Screw type auto conveyor
Spindle oil coolant Chain type tool magazine
Umbrella type tool magazine 4 Axis rotary table
Arm type tool magazine Ring spray spindle

BT50 15KW High Precision Industrial CNC Milling Machine 1500*700mm Table Size 6

CM80120 high speed engraving and milling machine for stainless steel

CM80120 high speed engraving and milling machine for stainless steel

BT50 15KW High Precision Industrial CNC Milling Machine 1500*700mm Table Size 9



Q1. Can you provide training for operation CNC machines?

A. Yes, free training in our factory is available.



Q2. How about your price?

A. Send me details about what you need, you will get the best price in China. The price is

competitive over the world.



Q3. What's your warranty terms?
A. We will supply a replacement for parts that prove to be defective for a period of 12 months,

starting on the machine’s bill of lading date. Extended warranty is available at the time of

purchase. Please contact your Joint sales representative for details.
