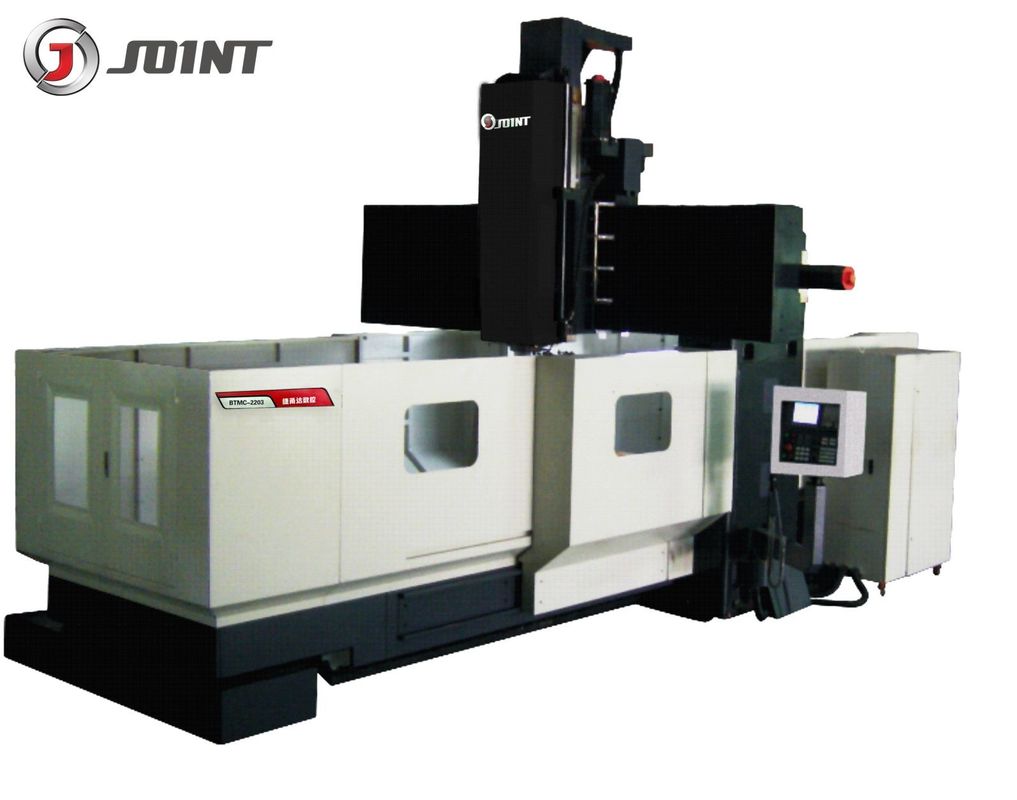

Large Image :  6000rpm large gantry milling machines , precision cnc machining equipment

Product Details:

Place of Origin: CHINA
Brand Name: JOINT
Certification: ISO 9001:2015
Model Number: BTMC-2202

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: NEGOTIATION
Packaging Details: WOODEN PALLTES / WOODEN CASE
Delivery Time: NEGOTIATION
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 SETS/YEAR
Detailed Product Description
Name: Gantry Type Double Column Machine Center Model Name: BTMC-2202
Table: 1800*2000mm X/Y/Z Axis Travel: 2000/2200/1000mm
Width Of Gantry: 2200mm Spindle Taper: BT50
Rotation Speed: 6000rpm Spindle Motor: 22kw
High Light:

double column cnc milling machines

,

gantry type milling machine

Gantry double column CNC milling center BTMC-2202



6000rpm large gantry milling machines , precision cnc machining equipment 0



Large castings, such as worktable, bed, pillar, cross beam and slide pillow, are made of high-grade



resin sand. The inner cavity of the castings is honeycomb-like composite arrangement structure.



The design is advanced. All the castings are aged and tempered twice. The residual internal stress



is eliminated to stabilize the material, ensure the stability of workpiece processing accuracy and



machine tool life. The worktable is fixed and the machine table occupies a small area.



6000rpm large gantry milling machines , precision cnc machining equipment 1



1. Base parts such as bed, worktable, column, cross member, ram and etc, made by high strength



    cast-iron, through heat aging and VSR treatment, with high mechanical property.


2. The spindle made by high accuracy and strength spindle parts, with high load capacity on both



    axial and radial;Belt type milling head, Max. Spindle speed 6000r/min, drive by servo motor;



    The spindle with cleaning system, it can clean the spindle taper bore.


3. With high pressure air to make sure the accuracy of tool install.


4. X/Y/Z axis with high accuracy and strength ball screw, cooperate with automatic lubrication,



    achieve high rapid feed speed, and Z axis with hydraulic balance device.


5. This machine use ring-type enclosed cover, structural safety and reliability.

6000rpm large gantry milling machines , precision cnc machining equipment 2



6000rpm large gantry milling machines , precision cnc machining equipment 3



Model BTMC-2202
Table size 1800*2000mm
X/Y/Z travel 2200*2200*1000mm
Distance between tool head and table 250-1250mm
Work table Y slot (NO.-size*pitch) 9-22*180mm
Width of gantry 2200mm
Spindle rotation speed 6000 rpm/min (optional 8000rpm/min)
Spindle Taper BT50(φ155/190mm)
Spindle Motor 22KW
X/Y/Z axis ball screw size 6310/6310/5010
X/Y axis guide way 55/55
X/Y/Z axis Rapid feed 8/10/12 m/min
Positioning accuracy 0.01mm
X/Y/Z axis Cutting feed 8 m/min
Dimension 7200*4300*5100mm
Net weight 28500kg
Max load of table 4000kg

6000rpm large gantry milling machines , precision cnc machining equipment 4



CM80120 high speed engraving and milling machine for stainless steel.jpgCM80120 high speed engraving and milling machine for stainless steel.jpgCNC 3 axis aluminum engrave and milling machine with taiwan controller system.jpg



CM80120 high speed engraving and milling machine for stainless steel

6000rpm large gantry milling machines , precision cnc machining equipment 9



6000rpm large gantry milling machines , precision cnc machining equipment 10

Q1. How can I get a quotation?
A. Leave us massage with your purchase requements and we will reply you ASAP. And you may
contact us directly by Trade Manager or Telephone.



Q2. Can you provide customized machine or SPM (Special purpose machine)?

A. Yes, we provide smart solutions for our customer, in order to increase efficiency.



Q3. Can you provide training for operation CNC machines?

A. Yes, free training in our factory is available.



Q4. How about your price?

A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.



Q5. What's your warranty terms?
A. We will supply a replacement for parts that prove to be defective for a period of 12 months,

starting on the machine’s bill of lading date. Extended warranty is available at the time of

purchase. Please contact your Joint sales representative for details.
