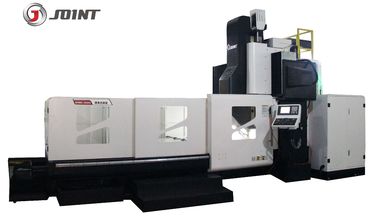

3 Axis Gantry Type Industrial CNC Milling Machine BTMC-1502Q 1650mm Width Of Gantry

3 Axis Gantry Type Industrial CNC Milling Machine BTMC-1502Q 1650mm Width Of Gantry
3 Axis Gantry Type Industrial CNC Milling Machine BTMC-1502Q 1650mm Width Of Gantry

Large Image :  3 Axis Gantry Type Industrial CNC Milling Machine BTMC-1502Q 1650mm Width Of Gantry

Product Details:
Place of Origin: CHINA
Brand Name: JOINT
Certification: ISO 9001:2015
Model Number: BTMC-1502Q
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: NEGOTIATION
Packaging Details: WOODEN PALLTES / WOODEN CASE
Delivery Time: NEGOTIATION
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 SETS/YEAR
Detailed Product Description
Name: Gantry Type Double Column Machine Center Model Name: BTMC-1502Q
Table: 1300*2000mm X/Y/Z Axis Travel: 2000/1660/850mm
Width Of Gantry: 1650mm Spindle Taper: BT50(φ190mm)
Rotation Speed: 6000rpm Spindle Motor: 15kw
High Light:

double column cnc milling machines

,

gantry type milling machine

Fixed beam gantry CNC machine center BTMC-1520Q



3 Axis Gantry Type Industrial CNC Milling Machine BTMC-1502Q 1650mm Width Of Gantry 0



BTMC-1520Q gantry type machine center is a new model developed to replace the large traditional "C"



type vertical machine center. Comprehensive improve large vertical machine center precision deviation



and the weakness of heavy load deformation, suitable for heavy mold processing, light size and large



processing plate processing.



3 Axis Gantry Type Industrial CNC Milling Machine BTMC-1502Q 1650mm Width Of Gantry 1



It has the following advantages:



◆ Improve the machine processing precision, the spindle centerline and Z axis guide way is basic coincidence surface, without accuracy deformation problem of spindle box caused by 780-950mm gap distance of VMC.



◆ Eliminate the accuracy difference caused by the suspension of both ends of the VMC worktable



◆ Y axis doesn’t bear work-piece weight and worktable running is no more than base of table. Solve the

deformation caused by long-term load bearing of vertical table



◆ The bearing capacity of the worktable is about 50% higher than that of VMC.



◆ Z axis adopts Nitrogen balance weight, improves the reaction speed and runs more smoothly than the

VMC weighting hammer.



3 Axis Gantry Type Industrial CNC Milling Machine BTMC-1502Q 1650mm Width Of Gantry 2

3 Axis Gantry Type Industrial CNC Milling Machine BTMC-1502Q 1650mm Width Of Gantry 3

Model BTMC-1520Q
Table size 2000*1300mm
X/Y/Z travel 2000*1660*850mm
Distance between tool head and table 240-1090mm
Work table Y slot (NO.-size*pitch) 7-22*170mm
Width of gantry 1650mm
Spindle rotation speed 6000 rpm/min (optional 8000rpm/min)
Spindle Taper BT50
Spindle Motor 15kw
X/Y/Z axis Rapid feed 8/10/12 m/min
Positioning accuracy 0.01mm
X/Y/Z axis Cutting feed 8 m/min
Dimension 5800*3300*4300mm
Net weight 15000kg
Max load of table 4000kg

3 Axis Gantry Type Industrial CNC Milling Machine BTMC-1502Q 1650mm Width Of Gantry 4



CM80120 high speed engraving and milling machine for stainless steel.jpgCM80120 high speed engraving and milling machine for stainless steel.jpgCNC 3 axis aluminum engrave and milling machine with taiwan controller system.jpg



3 Axis Gantry Type Industrial CNC Milling Machine BTMC-1502Q 1650mm Width Of Gantry 8
