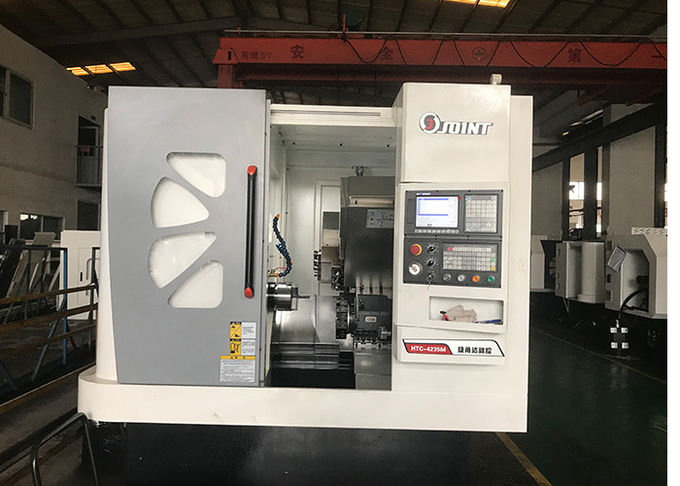

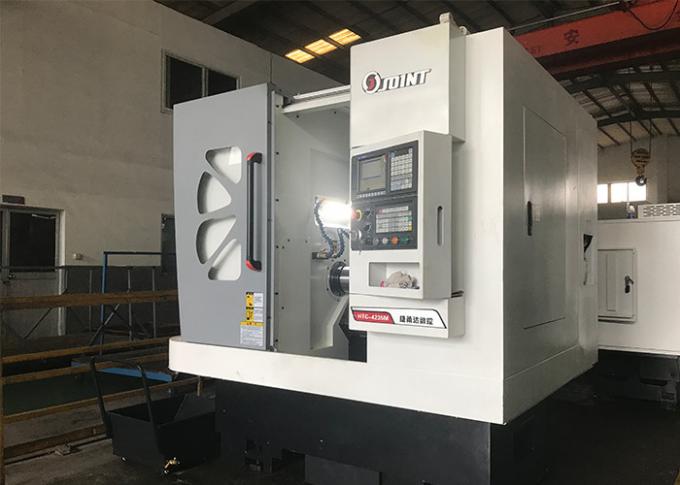

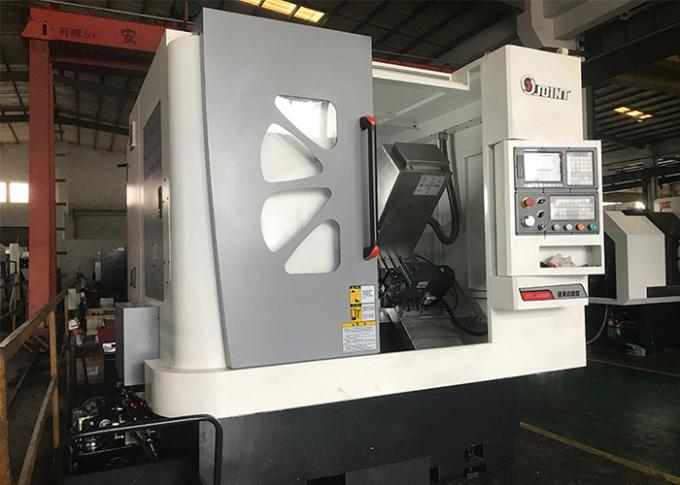

Slant Bed CNC Lathe Machine For Shaft Metal Cutting
1. Slant bed, high rigidity, high stability, smooth discharge, guarantee a long-term accuracy.
2. Low vibration,long work life of tools, save the cost of tools.
3. More choice of configuration, including counter spindle, VDI power turret, double turret,Y axis,automatic
feeding device, automatic receiving device.The machine realizes multiple turning and milling functions .
4. Semi-close loop control with two servo-drive connected directly.
5. Servo motors for both X and Z driving.
6. One piece base ensures the machines' high rigidity and less deformation and vibration.
7. Imported linear ball guide ways used for X and Z axis decreased the machine' s wearing and increase
machining precision accordingly.
8. Spindle is gear transmission and variable- frequency variable-speed droved by variable frequency motor
through belt which can clamping various plate, shaft, and component all at once.
9. It can complete the processing of recessing, groove, inner (outer) hole, spherical, R cone angle, curved
shape, cone shape, end face, and the single or multiple thread processing for the metric/inch threads.
10. It is applicable for multi and mass production, and can meet the processing demands for complex and
high precision parts.
|Max swing diameter over table||420mm|
|Max swing diameter over carriages||120mm|
|Max length of workpiece||330mm|
|Spindle head ||A-5(6")|
|Spindle motor ||5.5KW|
|Spindle rotation speed ||5000rpm|
|Spindle through-hole diameter ||56mm|
|bar diameter ||45mm|
|X axis limited travel||470mm|
|Z axis limited travel ||350mm|
|Tool post |
1. Gang tool /Four position electrical turret
2. six or eight position hydraulic turret
|Height of tool turret center ||63mm|
|X axis rapid movement ||20m/min|
|Z axis rapid movement ||20m/min|
|Bed type ||whole body slant type 45°|
|Net weight ||2400kgs |
