| Name: | Vertical Machining Center VMC1370 | X Axis Travel: | 1300mm |
|---|---|---|---|
| Y Axis Travel: | 700mm | Z Axis Travel: | 650mm |
| T-Slot: | 5-18*152.5 | Spindle Diameter: | BT50 150mm |
| Spindle Speed: | 6000rpm | Total Power: | 35KVA |
| High Light: | cnc milling machine,vertical milling center |
||

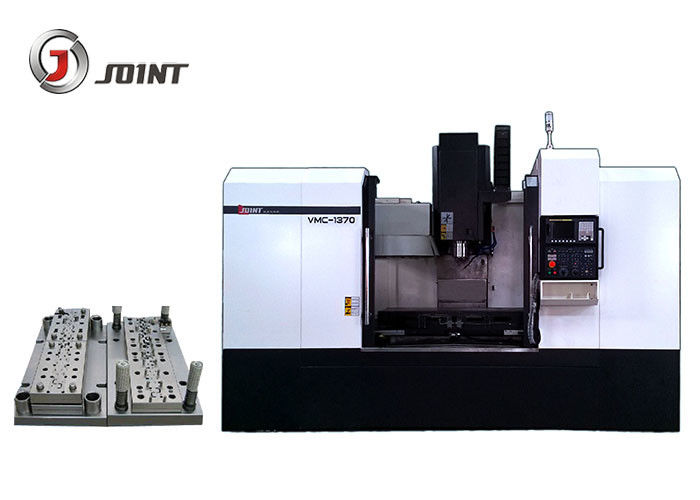

30kva Power BT50 6000rpm Spindle Vertical Machining Center VMC1370
Quick details:
1. Compact and reasonable structure design make the appearance eye-balls catching extraordinary.
2. The most reliable CNC controller in the industry powered by FANUC I0 MATE MD.
3. HIWIN transmission unit applied precise and high speed linear guide and C-3 grade grinding ballscrew.
4. High speed accurate mechanical spindle and servo spindle motor, ensures the reliable machining force and torque output.
5. Integral base iron casting and Unique design of compact tight anti-dust shield.
6. Pneumatic Automatic Tools Changer,Rapid tool-to-tool changing time short to 8 seconds.
Product features:
1. Centralized automatic lubrication system,and cooling&lighting system equipped.
The other brands CNC controllers, hard rail or linear rail and the 4th axis are optional to meet your particular financial and technical requirements.
2. Gapless harmonic gear box ensures the indexing a high accuracy.
3. The machine units and key parts are rigid resin iron casting,had been through aging treatment,eliminated the inner stress to ensure the structure durable and stable.
4. Equipped with coolant pump and fluid tank,cool down the workpiece and cutting tools by several flushing nozzles.
Specification Of Vertical machine center VMC1370
| Model | Unit | VMC1370 | ||
| Travel | X axis | mm | 1300 | |
| Y axis | mm | 700 | ||
| Z axis | mm | 650 | ||
| Distance between spindle and table | mm | 150-800 | ||
| Working table | Table size | mm | 1400*710 | |
| Max. Load of table | Kg | 1000 | ||
| T slot | Pcs－mm-mm | 5-18-152.5 | ||
| Positioning accuracy | X/Y/Z axis | mm | 0.01/0.008/0.008 | |
| Repeated positioning accuracy | X/Y/Z axis | mm | 0.008/0.007/0.007 | |
| Spindle | Spindle rotation speed | Rpm | 8000 | |
| Spindle taper | BT50 | |||
| Diameter | mm | Φ155 | ||
| Rivet model | BT40 45° | |||
| Rapid feed | X/Y/Z axis | m/min | 15/15/12 | |
| Cutting feed | X/Y/Z axis | m/min | 8 | |
| Tool magazine | Umbrella type | Size | Tools | 20 |
| Too changing time (T-T) | Sec | 6 | ||
| Max. diameter/ length/weight of tool | mm | 135/250/15 | ||
| Max tool diameter (no tool adjacent) | mm | 185 | ||
| Arm type | Size | Tools | 24 | |
| Tool changing time (T-T) | sec | 3.5s | ||
| Max. diameter/ /length/weight of tool | mm | 110/250/15 | ||
| Max tool diameter (no tool adjacent) | mm | 200 | ||
| Total capacity of electric | KVA | 35 | ||
| Weight of machine |
Kg |
10300 | ||
| Dimension | mm | 3560*3300*3100 | ||
Standard Accessories:
Fanuc Controller system
8000Rpm spindle
Full enclosed cover
Spindle encoder position system
Three axis inner encoder feedback system
Auto lubrication system
Pneumatic system
RS 232 Interface
Operation unit
RS232 Interface +working light
Tool and tool box
Optional accessories:
Siemens controller or other controller system
Spindle oil coolant
Heat exchanger
Umbrella type tool magazine
Arm type tool magazine
Screw type auto conveyor
Chain type tool magazine
4 Axis rotary table
Ring spray spindle
