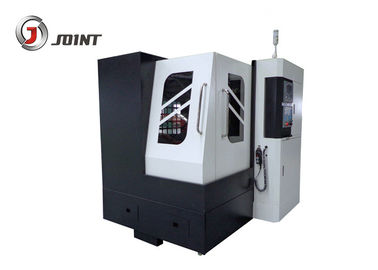

7.5KW Spindle Motor CNC Engraving Milling Machine , High Speed CNC Vertical Mill

7.5KW Spindle Motor CNC Engraving Milling Machine , High Speed CNC Vertical Mill
7.5KW Spindle Motor CNC Engraving Milling Machine , High Speed CNC Vertical Mill

Large Image :  7.5KW Spindle Motor CNC Engraving Milling Machine , High Speed CNC Vertical Mill

Product Details:

Place of Origin: CHINA
Brand Name: JOINT
Certification: ISO 9001:2015
Model Number: CM-80100

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: NEGOTIATION
Packaging Details: WOODEN PALLTES / WOODEN CASE
Delivery Time: NEGOTIATION
Payment Terms: TT/LC/DA/DP
Supply Ability: 1000 SETS/YEAR
Detailed Product Description
Table Size: 820*1020mm Model: CM-80100
Tabel Travel: 820*1000*350mm Rotation Speed: 18000/24000rpm
Spindle Motor: 7.5kw 3 Axis Servo Motor: 1.8kw
High Light:

cnc metal engraving machine

,

Metal Milling Machine

China High speed metal cnc engraving and milling machine for mold making



Product Feature



1. X/Y/Z axis are linear guide way ,



2. Guarantee spindle stationary in high speed running, realized high finish machining.



3. High precision ,high rigidity machine body



3. HIgh rigidity finit element design machine casting, spindle box strengthening rod, reinforced structure.



4. Coupling ,spindle bearing ,spindle,ball screw ,and other key parts are imported from germany Japan and taiwan top brands to ensure high quality and stability



5. Taiwan high precise 40000rpm/HSK electrical spindle, realized high speed processing.





Feature:



1. Spindle with germany HEIDENHAIN encoder, driving, realize rigid tapping.



2. The cutting strength increased 20% in comparison with similar models



2. Resin sand casting, German brand or Taiwan brand linear  guide way, screw



4. Key parts are imported from Famous top brand



3. Japanese/German bearing, ensure machine high precision, high quality and precision of stability.



Details:



1.Three axes adopt Taiwan brand line rail



2. BT30/40000RPM/5.5KW Spindle



3. Japanese nsk Precision bearing and Taiwan High quality Precision Ball Screw



4. Syntec 11MA/21MA Controller



5. High performance imported NC system



6. Realize high speed processing





Specification of cnc engrave machine for metal



Model CM-80100
Table size 820*1020mm
X axis travel 820mm
Y axis travel  1000mm
Z axis travel 350mm
Width of gantry 900mm
Spindle taper ER25/BT30
Spindle Rotation speed  24000/18000rpm
Spindle motor  7.5kw
X/Y/Z axis servo motor  1.8kw
Distance between tool head and table electrial 120-470mm
X/YZ axis feed speed  8m/min
X/Y/Z axis rapid speed  20m/min
Dimension  3300*2400*2980mm
