800mm X Travel Vertical Machine Center 7.5kw Rapid feed 30m / min VMC850L

800mm X Travel Vertical Machine Center 7.5kw Rapid feed 30m / min VMC850L
800mm X Travel Vertical Machine Center 7.5kw Rapid feed 30m / min VMC850L

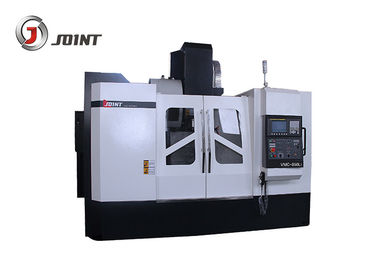

Large Image :  800mm X Travel Vertical Machine Center 7.5kw Rapid feed 30m / min VMC850L

Product Details:
Place of Origin: CHINA
Brand Name: JOINT
Certification: ISO 9001:2015
Model Number: VMC850L
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Delivery Time: NEGOTIATION
Payment Terms: TT/LC/DA/DP
Supply Ability: 1000 SETS/YEAR
Detailed Product Description
Table Size: 1000*500mm Travel: 800*500*500mm
Distance Between Spindle And Table: 110-610mm Spindle Speed: 8000/10000/12000/15000rpm
Spindle Motor: 7.5kw Rapid Feed: 30/30/18 M/min
Net Weight: 5400kg Dimension: 2750*2380*2600mm
High Light:

vmc cnc milling machine


cnc moulding machine

800mm X Travel Vertical Machine Center 7.5kw Rapid feed 30m / min VMC850L​



Product features:


1.High rigidity structure,best stabilization.


2.Main structure achieves its best high rigidity and stablization through the analysis of finite element.


3.The stabilization of castings machining precision can be guaranteed through twice seasoning.


4.All three axles adopt pre-pulling function and this can avoid distortion when heating and make sure the precision when fast operating.


5.Three axles x,y,z all adopt famous brand guide which is of high rigidity,low noise and less friction.This can do fast displacement and get best circle precision.


6.Adopting the high-speed,high precision guide rail.


Why choose us:


1. We have exported machine to over 100 countries, and we have good reputation from market.

2. We have professional technology and service teams.

3. Strict quality control procedures from purchase, produce, installation, debugging.

4. Commodity diversification. We can offer various CNC machines for different usage.




Specification Of Vertical machine center VMC850L


Model Unit VMC-850L
Travel X axis mm 800
Y axis mm 500
Z axis mm 500
Distance between spindle and table mm 110-610
Working table Table size mm 1000*500
Max. Load of table Kg 450
T slot Pcs-mm-mm 5-18-90
Positioning accuracy X/Y/Z axis mm 0.006/0.006/0.008
Repeated positioning accuracy X/Y/Z axis mm 0.005/0.005/0.007
Spindle Spindle rotation speed Rpm 8000
Spindle taper   BT40
Diameter mm Φ150
Rivet model   BT40 45°
Rapid feed X/Y/Z axis m/min 30/30/18
Cutting feed X/Y/Z axis m/min 10
Tool magazine Umbrella type Size Tools 16
Too changing time (T-T) Sec 6
Max. diameter/ length/weight of tool mm 100/200/8
Max tool diameter (no tool adjacent) mm 180
Arm type Size Tools 24
Tool changing time (T-T) sec 3.5s
Max. diameter/ /length/weight of tool mm 80/200/8
Max tool diameter (no tool adjacent) mm 150
Total capacity of electric KVA 15
Weight of machine



Dimension mm 2750*2380*2600


Standard Accessories:


Fanuc/Mitsubishi Controller system


Full enclosed cover


Spindle encoder position system


Three axis inner encoder feedback system


Auto lubrication system


Pneumatic system


RS 232 Interface


Operation unit


Working light


Tool and tool box


Optional accessories:


Siemens controller or other controller system


Spindle oil coolant


Umbrella type tool magazine


Arm type tool magazine


Screw type auto conveyor


Chain type tool magazine


4 Axis rotary table


Ring spray spindle
