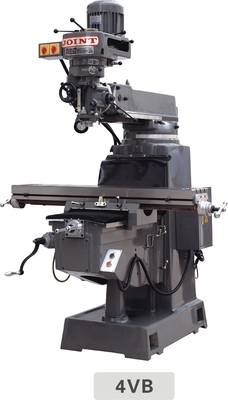

Turret 5440rpm Vertical Milling Machine Strengthened Fuselage 4VB R8 Taper

Turret 5440rpm Vertical Milling Machine Strengthened Fuselage 4VB R8 Taper
Turret 5440rpm Vertical Milling Machine Strengthened Fuselage 4VB R8 Taper

Large Image :  Turret 5440rpm Vertical Milling Machine Strengthened Fuselage 4VB R8 Taper

Product Details:
Place of Origin: China
Brand Name: JOINT
Certification: ISO 9001:2015
Model Number: 4VB
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: NEGOTIATION
Packaging Details: Wooden pallet/ wooden case
Delivery Time: NEGOTIATION
Payment Terms: L/C, T/T
Supply Ability: 1000 SETS/YEAR
Detailed Product Description
Table Size: 1270*254*90mm Three Axes Travel: 900/440/390mm
Max Distance From The Spindle Nose To Table: 420mm Spindle Rotation Speed: 80-5440rpm(60HZ)
Package Way: Pallet And Plywoode Case Dimension: 1500*1700*2150mm
High Light:

Strengthened Fuselage Vertical Milling Machine

,

5440rpm Vertical Milling Machine

,

R8 Taper Cnc Milling Machine

Product main advantages:



1. Spindle tolerance: 2μ.
2. Tw
ice precision scraping can ensure processing quality.
3. Taiwan original milling head, Japan NSK P4 precision spindle bearing.

4. We are a manufacturer of turret milling machine since 1995. We started at the very first begining of it.

     And we were once honored by Ten Top Brand.



It is suitable for precision electronic machinery, presicion electronic devices, mold parts and other precision parts of the hole, groove, frame.









Specification:


Model 4VB
Table size mm 1270*254*90
Travel X axis mm 900
Y axis mm 440
Z axis mm 390
Travel of spindle quill mm 127
Maximum distance from spindle nose to table mm 420
Spindle Rotation speed
(Step speed milling head)
50HZ rpm 60-4530 (16 grade)
60HZ rpm 80-5440 (16 grade)
Rotation speed
(Variable speed milling head)
50HZ rpm 50-3500
60HZ rpm 60-4200
Rotation speed
(Inverter speed milling head)
50HZ rpm 0-4200
60HZ rpm 0-4200
Taper   R8 (NT30)
Rated power HP 3HP
Tilt angle Forward and Backward   ±45°
Left and Right   ±90°
Dimension mm 1500*1700*2150
Net weight kg 1350





VA series standard accessorie:



1. Taiwan original step milling head

2. Working light

3. Guideway cover

4. M12 clamping kit

5. R8 collet (7 pcs)

6. Draw bar

7. Manual oil pump

8. Accompanied toolbox





Optional accessories:



1. 6'' or 8'' vise

2. Electric power feed (2 axis and 3 axis)

3. Mechnical power feed (2 axis and 3 axis)

4. Water pump+water tray

5. Dro(2 axis or 3 axis)





Overview:



Turret 5440rpm Vertical Milling Machine Strengthened Fuselage 4VB R8 Taper 0

                                           Original milling head and double switch



Turret 5440rpm Vertical Milling Machine Strengthened Fuselage 4VB R8 Taper 1

                      Electrical power feed (can provide Sinno brand and ALONG brand)





Turret 5440rpm Vertical Milling Machine Strengthened Fuselage 4VB R8 Taper 2

                                              Milling machine with water tray and plate



Turret 5440rpm Vertical Milling Machine Strengthened Fuselage 4VB R8 Taper 3



Package:



Turret 5440rpm Vertical Milling Machine Strengthened Fuselage 4VB R8 Taper 4



Turret 5440rpm Vertical Milling Machine Strengthened Fuselage 4VB R8 Taper 5
