Economical Series Vertical Turret Milling Machine 4M with Working Table Size 1270*254mm

China SHENZHEN JOINT TECHNOLOGY CO.,LTD certification
China SHENZHEN JOINT TECHNOLOGY CO.,LTD certification
JOINT is a professtional manufacturing mold processing and machinery parts processing equipment. We have cooperation with each other many year. JOINT'S professtional product line and best service won our approval.

—— VK from Chennai,India

I am proud to say that over the years, GT was very glad to found and be partners with Joint Machines Before Joint, I had been collaborating with another China supplier for our conventional machine line (eg. milling & grinder) but regrettably and no offence meant the quality of the machine and after sales support.

—— Christian from Manila, Philippines

Joint is good, help a lot for us to do the marketing. But, we want more help on technical and marketing. And I will do more business with Joint.

—— Mr Maymen from Turkey

I'm Online Chat Now

Economical Series Vertical Turret Milling Machine 4M with Working Table Size 1270*254mm

Economical Series Vertical Turret Milling Machine 4M with Working Table Size 1270*254mm
Economical Series Vertical Turret Milling Machine 4M with Working Table Size 1270*254mm
video play

Large Image :  Economical Series Vertical Turret Milling Machine 4M with Working Table Size 1270*254mm

Product Details:
Place of Origin: CHINA
Brand Name: RATEE
Certification: ISO 9001:2015
Model Number: 4M
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: NEGOTIATION
Packaging Details: WOODEN PALLTES / WOODEN CASE
Delivery Time: NEGOTIATION
Payment Terms: TT/LC
Supply Ability: 1000 SETS/YEAR
Detailed Product Description
Table Size: 1270*254*90mm X/Y/Z Axis Travel: 900/395/350mm
Max Distance From Spindle Nose To Table: 400 Spindle Rotation Speed: 66-4540rpm(50HZ)/80-5440/60HZ
OEM Service: Can Provide OEM Service DRO: 2 Axis Or 3 Axis
Dimension: 1500*1700*2150mm Milling Head: R8(NT30)/3HP

Product Characteristics:



1. Suitable for small model household appliances, daily necessities mold processing.



2. Selection of excellent accessories, strict quality control, the machine durability is long.



3. Crazy abrasive guide rail, thick bed body, casting aging treatment and durable.



4. Productivity,, high efficiency, strong cutting machine.





Parameters Sheet:



Model 4M
Table size mm 1270*254*90
Travel (Longitude X) mm 900
Travel (Crossward Y) mm 395
Travel (Vertical Z) mm 350
Travel of spindle quill mm 127
Max distance from spindle nose and table mm 400
Spindle Rotation speed Step speed milling head 50HZ 66-4540
60HZ 80-5440
Variable speed milling head 50HZ 40-3125
60HZ 503750
Inverter speed milling head 50HZ 0-4200
60HZ 0-4200
Spindle taper R8(NT30)
Spindle rated motor 3HP
Tilt angle (Forward and backward) ±45°
Tilt angle (Left and right) ±90°
Dimension mm 1500*1700*2150
Net weight kg 1250





Standard Accessories:



1. Working light



2. Way cover



3. R8/3HP spindle step speed milling head



4. R8 inch draw bar



5. Technical document



6. Accompanied toolbox





Optional accessories:



1. R8 (7 pcs) milling chuck



2. M12 clamping kits



3. 6' vise



4.  Power feed



5. 2 axis/3 axis DRO





Overview:

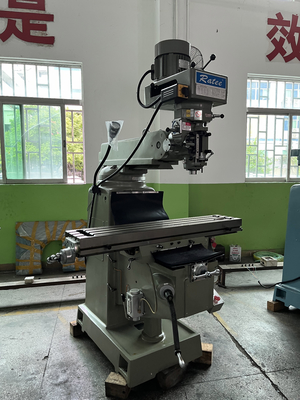

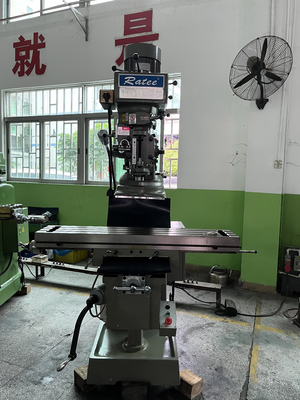

Economical Series Vertical Turret Milling Machine 4M with Working Table Size 1270*254mm 0



Economical Series Vertical Turret Milling Machine 4M with Working Table Size 1270*254mm 1



Economical Series Vertical Turret Milling Machine 4M with Working Table Size 1270*254mm 2



Package:

Economical Series Vertical Turret Milling Machine 4M with Working Table Size 1270*254mm 3

Economical Series Vertical Turret Milling Machine 4M with Working Table Size 1270*254mm 4

Economical Series Vertical Turret Milling Machine 4M with Working Table Size 1270*254mm 5

Economical Series Vertical Turret Milling Machine 4M with Working Table Size 1270*254mm 6

Economical Series Vertical Turret Milling Machine 4M with Working Table Size 1270*254mm 7
