| X Axis Travel: | 1200mm | Y Axis Travel: | 700mm |
|---|---|---|---|
| Z Axis Travel: | 650mm | X/Y/Z Axis Rapid Feed: | 20/20/15 M/min |
| Cutting Feed: | 10 M/min | Spindle Speed: | 8000rpm |
| Table Size: | 1360*700mm | Spindle Taper: | BT50 |
| High Light: | cnc milling machine,vertical milling center |
||

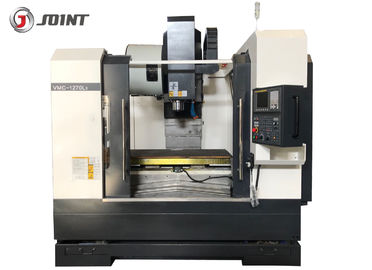

Three axis ball linear way CNC Machine Center VMC1270L3
L3 series machine is designed based on fast and rigid processing, which provides guarantee
for mass production of parts, processing accuracy and maximum processing efficiency ,
Modular combination of high efficient chip removal, rapid feed and high speed spindle
functions to meet different customers’ personalized Choice. The key parts of machine adopt
imported world’s top brands high quality parts.
1. L3 series VMC Z axis linear way, effectively improve processing efficiency
2. VMC-1270L3 increase Z axis travel to 700mm and are able to install 4 axis rotary table for
complex parts processing.
3. VMC127L3 (BT40 Spindle ). Suitable for large size parts processing, with optional spindle
rotation speed (10000/12000rpm)
| Model | Unit | VMC1270L3 | ||
| Travel | X axis | mm | 1200 | |
| Y axis | mm | 700 | ||
| Z axis | mm | 650 | ||
| Distance between spindle and table | mm | 155-860 | ||
| Working table | Table size | mm | 1360*700 | |
| Max. Load of table | Kg | 1000 | ||
| T slot | Pcs－mm-mm | 5-18-122 | ||
| Positioning accuracy | X/Y/Z axis | mm | 0.008/0.008/0.008 | |
| Repeated positioning accuracy | X/Y/Z axis | mm | 0.006/0.006/0.006 | |
| Spindle | Spindle rotation speed | Rpm | 8000 | |
| Spindle taper | BT40 | |||
| Diameter | mm | Φ150 | ||
| Rapid feed | X/Y/Z axis | m/min | 20/20/15 | |
| Cutting feed | X/Y/Z axis | m/min | 10 | |
| Tool magazine | Umbrella type | Size | Tools | 20 |
| Too changing time (T-T) | Sec | 8s | ||
| Max.tool weight | Kg | 15 | ||
|
Max tool diameter (no tool adjacent) |
mm | 150/180 | ||
| Arm type | Size | Tools | 24 | |
| Tool changing time (T-T) | sec | 4.5s | ||
| Max. diameter/ /length/weight of tool | mm | 110/200 | ||
|
Max. tool weight |
Kg | 15 | ||
| Total capacity of electric | KVA | 25 | ||
| Weight of machine |
Kg |
9000 | ||
| Dimension | mm | 3560*3300*3250 | ||
1. Fanuc MF(5) Controller system 2. 8000Rpm spindle
3. Full enclosed cover 4.Spindle encoder position system
5. Three axis inner encoder feedback system 6. Auto lubrication system
7. Pneumatic system 8. RS 232 Interface
9. Operation unit 10. Working light
11. Tool and tool box
1. M80A Mitsubishi controller system 2. Spindle oil coolant
3. Heat exchanger 4. Umbrella type tool magazine
5. Arm type tool magazine 6. Screw type auto conveyor
7. Chain type tool magazine 8. 4 Axis rotary table
9. Ring spray spindle
