Product Details:
Payment & Shipping Terms:
|
| Type: | CNC | Power(w): | 7.5 |
|---|---|---|---|
| Condition: | New | Weight: | 5300 |
| Voltage: | 220V/380V/415V/Other | After-sales Service Provided: | Optional |
| Dimension(l*w*h): | 2550*2850*2800 | Certification: | CE /ISO9001/SGS |
| Machine Type: | Vertical | Spindle Taper: | BT40 |
| Spindle Speed: | 10000/12000/15000RPM | Color: | Black Or White /Other |
| Control System: | Fanuc /Mitsubishi | Table Size: | 550*1000mm |
| Product Name: | Vertical Machine Center | Worktable Size: | 800*550*550mm |
| Application: | Metal Machining ,Parts Machining , | Guideway Type: | Roller Type Linear Way |
| High Light: | 7.5w CNC Milling Vertical Machine,15000RPM CNC Milling Vertical Machine,BT40 Spindle Vertical Machining Center |
||

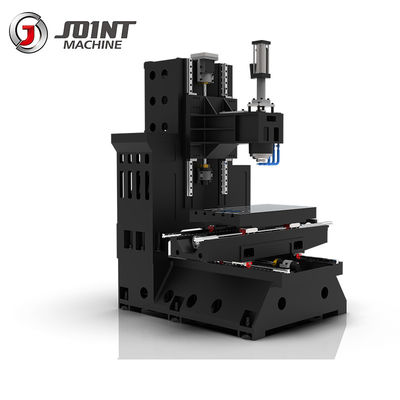

3 axis Roller linear way CNC Milling Vertical Machine Center V855
Feature :
1, 3 axis adpot roller type linear guide way , rapid feed:48m/min
2, The unique large-span structure of the base and column can withstand the inertia caused by high G with high overall dynamic response
3, With direct connection short nose high speed spindle
4, Optional :12000rpm/15000rpm direct connection spindle , Coolant through spindle ,ring spray spindle .
Specification of CNC Vertical milling machine
| Model | Unit | V855 | ||
| Travel | X axis | mm | 800 | |
| Y axis | mm | 550 | ||
| Z axis | mm | 550 | ||
| Distance between spindle and table | mm | 140-690 | ||
| Working table | Table size | mm | 550*1000 | |
| Max. Load of table | Kg | 500 | ||
| T slot | Pcs－mm-mm | 5-18-100 | ||
| Positioning accuracy | X/Y/Z axis | mm | 0.006/0.006/0.006 | |
| Repeated positioning accuracy | X/Y/Z axis | mm | 0.007/0.007/0.007 | |
| Spindle | Spindle rotation speed | Rpm | 10000 | |
| Spindle taper | BT40 | |||
| Diameter | mm | Φ150 | ||
| Rivet model | BT40 45° | |||
| Rapid feed | X/Y/Z axis | m/min | 48/48/48 | |
| Cutting feed | X/Y/Z axis | m/min | 15 | |
| Tool magazine | Arm type | Size | Tools | 24 |
| Tool changing time (T-T) | sec | 3.5s | ||
| Max. diameter/ /length/weight of tool | mm | 80/200/8 | ||
| Max tool diameter (no tool adjacent) | mm | 150 | ||
| Total capacity of electric | KVA | 15 | ||
| Weight of machine |
Kg
|
5300 | ||
| Dimension | mm |
2550*2850*2800 |
||
Machine Picture
Standard Accessories:
Fanuc / Mitsubishi Controller system
10000Rpm spindle
Full enclosed cover
Spindle encoder position system
Three axis inner encoder feedback system
Auto lubrication system
Pneumatic system
RS 232 Interface
Operation unit
RS232 Interface +working light
Tool and tool box
Optional accessories:
Siemens controller or other controller system
Spindle oil coolant
Heat exchanger
Umbrella type tool magazine
Arm type tool magazine
Screw type auto conveyor
Chain type tool magazine
4 Axis 5 axis rotary table
Ring spray spindle
CTS (Coolant through Spindle )
12000Rpm/15000rpm/24000rpm
Oil skimmer
Machine Detail
Fanuc Controller
Taiwan Spindle and ATC
Application
Why Choose Joint Machine ?
1.26year professsional cnc machinery manufacturer In China
2. National High -tech Enterprise
3.Shenzhen famous brand "JOINT"
4. Member of China Quality Association
5.Vice -Chairmen of shenzhen Machinery Association
6.Awarded China Metal Cutting Industry Top 50 for Five years in manufacturing industry
