| Name: | Surface Gringding Machine | Spindle Rotation Speed: | 2800/50HZ |
|---|---|---|---|
| Table Size: | 460*200mm | X Axis Travel: | 540mm |
| Y Axis Travel: | 240mm | Guide Way: | Slide Way |
| Dimension: | 1800*1400*1775mm | Net Weight: | 1250kgs |
| High Light: | Metal Grinding Machine,Precision Grinding Machine |
||

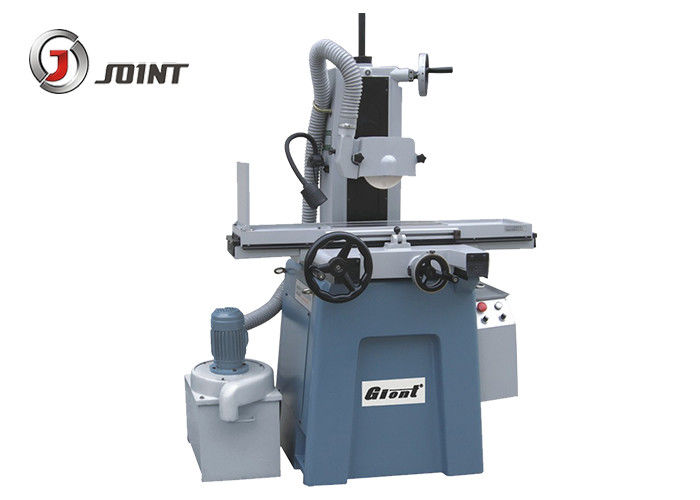

High cost performance three axis manual surface grinding machine 250M
1. Precision grinding built-in electro spindle runs in maintenance-free, support by preload high
precision angular ball bearing.
2. The machine bed,table and column are high grade casting piece,which supply strong base for
grinding.the slideway is coat with TF wearable material and manual precision scrapped.
3. Hardened steel guide way and rolling ball(made in Taiwan )structure is adopt on X axis, with
smoothly motion,high accuracy and long life.
4. High precision cross and vertical lead screws are made in Taiwan.
| Model | 250M | ||||
| Table size | 460*200mm | ||||
| Travel ( Longitude ) | 540mm | ||||
| Travel ( Crossward ) | 240mm | ||||
| Table side way | Slide way | ||||
| Max.distance from spindle center to working table | 460mm | ||||
| Crossward feed of hand wheel ( 1Rev ) | 4 | ||||
| Crossward feed of hand wheel ( 1Div ) | 0.02 | ||||
| Vertical feed of hand wheel ( 1Rev ) | 1/2 | ||||
| Vertical feed of hand wheel ( 1Div ) | 0.005 | ||||
| Rotation speed |
2880rpm/50HZ 3360rpm/60HZ |
||||
| Grinding wheel size | Ø205*(6-20)*Ø31.75mm | ||||
| Spindle motor | 1.5*2 | ||||
| Vertical driven motor | 0.1*4 | ||||
| Dust-clean motor | 0.75*2 | ||||
| Coolant pump motor | 0.12*2 | ||||
| Dimension ( L*W*H ) | 1800*1400*1775mm | ||||
| Net weight | 1250kg | ||||
