| X/Y Axis Trval: | 510/210mm | Max Distance From Spindle Center To Working Table: | 400mm |
|---|---|---|---|
| Rotation Speed: | 2800rpm (50HZ) | Gideway: | Slide Way |
| Grinding Wheel Size: | 200*(6-20)*F31.75 | Size: | 1500*1220*2090 |
| High Light: | Permanent Maganet Surface Grinding Machine,Slide way Surface Grinding Machine,2800rpm hydraulic surface grinding machine |
||
Product Characteristics:
1. Imported high accuracy grinding head.
2. High quality resin, ageing treatment.
3.Taiwan high quality hydraulic system and high precision grinding head.
Specification sheet:

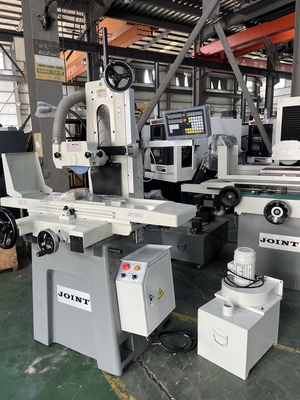

| Model | 818M | ||
| Table size | mm | 460*200 | |
| Travel | Longitude (X) | mm | 510 |
| Crossward (Y) | mm | 210 | |
|
Distance between spindle center and table |
mm |
400 |
|
| Table slideway | Slide way | ||
| Crossward feed of hand wheel | 1 Rev | mm | 5 |
| 1 Div | mm | 0.02 | |
| Vertical feed of hand wheel | 1 Rev | mm | 1 |
| 1 Div | mm | 0.05 | |
| Rotation speed (50HZ) | Rpm | 2800 | |
| Grinding wheel size | F200*(6-20)*F31.75 | ||
| Spindle motor(horsepower*speed) | 2*2 | ||
| Hydraulic motor | - | ||
| Crossward driven motor | - | ||
| Vertical driven motor | - | ||
| Coolant pump motor | 0.12*2 | ||
| Dimension (L*W*H) | mm | 1500*1220*2090 | |
| Gross weight | kg | 900 | |
Standard Accessories:
1. Grinding wheel
2. 818M equips with permanent magnetic chuck
3. 818H equips with permanent magnetic chuck
4. 818AH equips with electric magenetic chuck
5. 150*350mm permanent magnetic chuck 150*350mm
6. Dust clean system
7. Manual oil pump
8. Diamond dresser tip+holder
9. Wheel flange and extractor
10. Leveling pad and bolt
11. Wheel balancing arbor
12. Working light
13. Technical document
Accessories:
Permanent magnet chuck Demagnizer
Balancing bracket
