Product Details:
Payment & Shipping Terms:
|
| Name: | Cnc Lathe Machine | Model: | HTC3627 |
|---|---|---|---|
| Max Swing Diameter Over Table: | 360mm | Max Length Of Workpiece: | 200mm |
| Z Aixs Limited Travel: | 270mm | Net Weight: | 1850kgs |
| Spindle Rotation Speed: | 6000rpm | Spindle Motor: | 5.5KW |
| High Light: | cnc metal lathe machine,cnc lathe machining |
||

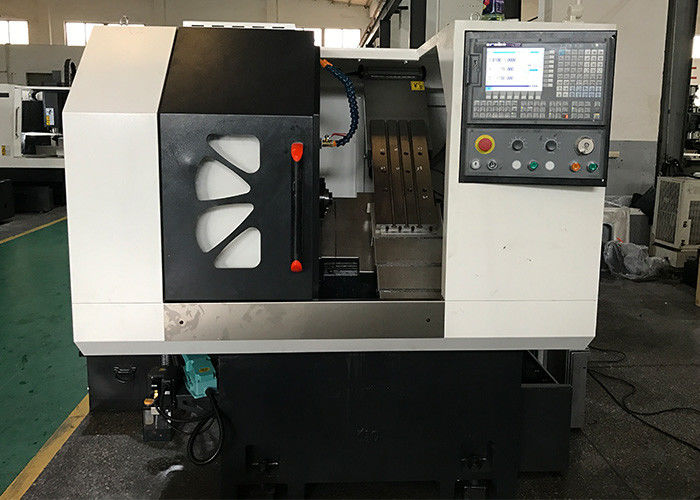

6000rpm Slant Type Cnc Lathe Machine Spindle Through Hole 56mm
Product Feature
1. The bed of slant 30°/45° structure,the dynamic absorption and great stiffness to ensure high precision
2. Optimization of the bed,bed saddle,screw,bearing structure can improve accuracy and stablility of
machine ,the repeatablitiy,precision increase of 30%,some of performance indicators have reached the
level of precision machine standard
Specail Model
The series are widely used in automobile,mould,bearings,electronic etc.
Can meet processing the aluminum,copper,non metal material,stainless,steel, steel,iron etc metal.
can one times fixture can automatically complete turning and bearing ,drilling ,reaming ,reaming and tapping processing .
Specification of cnc lathe machine
| Model | HTC3627 |
| Max swing diameter over table | 360mm |
| Max swing diameter over carriages | 120mm |
| Max length of workpiece | 200mm |
| Spindle head | A-4(5") |
| Spindle motor | 5.5KW |
| Spindle rotation speed | 6000rpm |
| Spindle through-hole diameter | 56mm |
| bar diameter | 42mm |
| X axis limited travel | 380mm |
| Z axis limited travel | 270mm |
| Tool post | Gang tool /Four position electrical turret /six or eight position hydraulic turret |
| Height of tool turret center | 63mm |
| X axis rapid movement | 20m/min |
| Z axis rapid movement | 20m/min |
| Bed type | whole body slant type 45° |
| Dimension | 1500*1200*1700mm |
| Net weight | 1750kgs |
Standard accessories
GSK Or Syntec or Fanuc controller

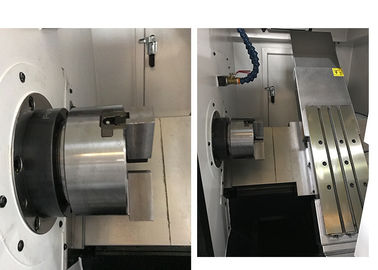

hydraulic three jaw chuck
5.5KW servo spindle motor
Taiwan spindle
Imported ball screw
Imported linear way
