| Max Swing Diameter Over Bed: | 360mm | Max Processing Length: | 280mm |
|---|---|---|---|
| X Axis Travel: | 190mm | Z Axis Travel: | 300mm |
| Spindle Head Form: | A2-5(6") | Spindle Through Hole Diameter: | 56mm |
| High Light: | Speed 4000rpm CNC Lathe Machine,Part Processing Slant bed cnc center,Slant Bed CNC Lathe Machine |
||
Characteristics:
1. Slant bed high quality casting, high stability design, suitable for high rotation speed high feed processing.
2. X and Z two axis adopt linear guideway, two axis rapid moving speed can reach 20m/min.
3. Integral high speed spindle, insuring precisive high speed cutting performance.
4. Can equipped with gang type tool, suitable for batch goods precisive processing.
Parameters sheet:
| Item | Unit | CKH-3630 |
| Max swing over bed | mm | 360 |
| Max turning diameter on carriage | (mm) | 200 |
| Max processing length | (mm) | 280 |
| Spindle head form (optional with chuck) | A2-5(6'') | |
| Spindle motor rate | kw | 7.5 |
| Spindle max rotation speed | rpm | 4000 |
| Spindle hole diameter | mm | Ø56 |
| Work piece bar diameter | mm | Ø45 |
| X axis max travel | mm | 190 |
| Z axis max travel | mm | 300 |
| Carriage | 12T servo tool turret/gang type tool | |
| Tool turret center height | mm | 63/54 |
| X axis rapid movement | mm/min | 30 |
| Z axis rapid movement | mm/min | 30 |
| Machine bed form and slope | The whole 30° | |
| Dimension (L*W*H) | mm | 2050*1300*1650 |
| Weight | Kg | 2200 |
Standard accessories:
Optional accessories:
4 positions electric tool carrier

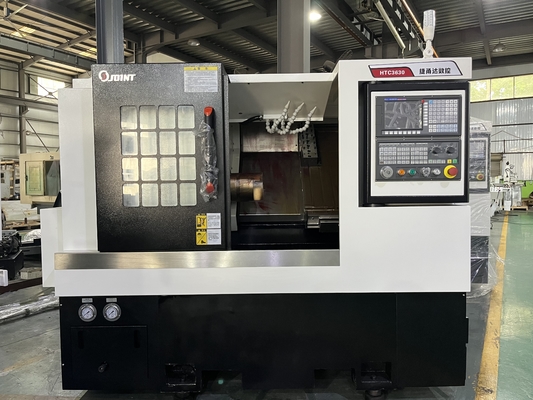

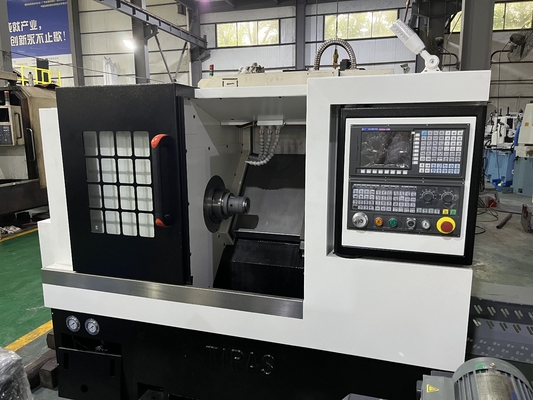

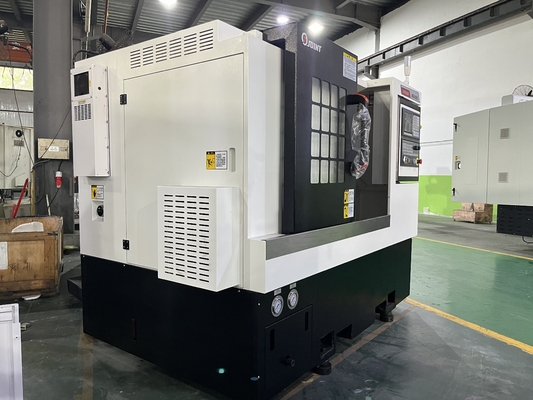

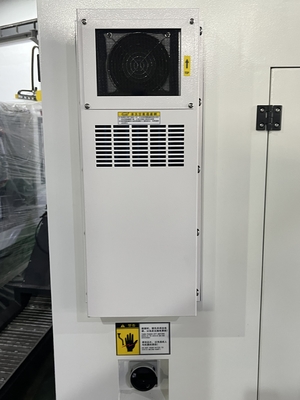

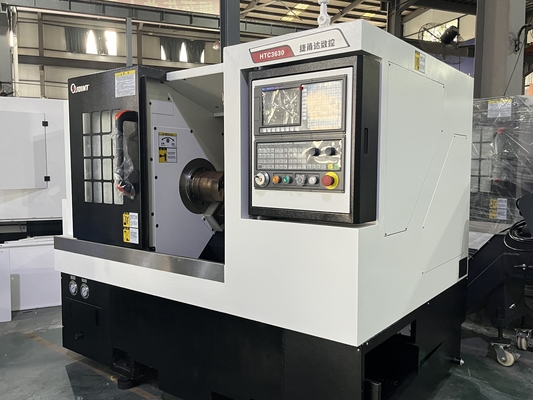

Overview:
Main Parts Brand:
| No | Name | Brand | Original place |
| 1 | Machine body | JOINT | China |
| 2 | Control system | GSK | China |
| 3 | Spindle motor | GSK | China |
| 4 | Spindle | KENTURN | China Taiwan |
| 5 | Linear guideway | HIWIN/THK | China Taiwan |
| 6 | Ball screw | HIWIN/THK | China Taiwan |
| 7 | Screw lock nut | YinSh | China Taiwan |
| 8 | Lubrication system | HERG | Joint venture of China and Japan |
