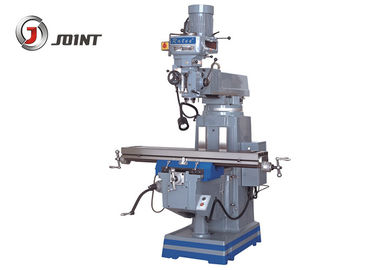

Metal Manual Heavy Duty Vertical Milling Machine Household Appliances 1750kgs

Metal Manual Heavy Duty Vertical Milling Machine Household Appliances 1750kgs
Metal Manual Heavy Duty Vertical Milling Machine Household Appliances 1750kgs

Large Image :  Metal Manual Heavy Duty Vertical Milling Machine Household Appliances 1750kgs

Product Details:
Place of Origin: CHINA
Brand Name: JOINT
Certification: ISO 9001:2015
Model Number: 5EB
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: NEGOTIATION
Packaging Details: WOODEN PALLTES / WOODEN CASE
Delivery Time: NEGOTIATION
Payment Terms: TT/LC/DA/DP
Supply Ability: 1000 SETS/YEAR
Detailed Product Description
Spindle Totation Speed: 66-4530rpm Operated: Manual
Table Size: 1270*254mm Travel(X/Y/Z): 900*370*360mm
Spindle Power: 5HP Processing Type: Household Appliances
High Light:

turret head milling machine

,

vertical turret mill

Metal Manual Turret Milling Machine 66-4530rpm For Household Appliances 5EB


Product Details

1. Square guideway on Y and Z axis is featured a good rigidity and stability.

2. X axis is dovetail way.

3. Adopted strengthen rion both sides of the column,that makes the machine rigid and beautiful.

4. The machine is high quality with competitive price.


Quality Guarantee

1. Quality is our forte and we have clients spreading all over the world.



2. We are committed to a well-defined and self-framed quality policy.



3. The policy revolves around through and repeated checking of the turret milling machine .




Specifiaction


Model 5EB
Table size  1270*254*90mm
X axis travel  900mm
Y axis travel  370mm
Z axis travel  360mm
Travel of spindle quill 127mm
Max distance from the spindle nose to table  400mm
Spindle rotation speed  80-5440/(16Grades)/60HZ  66-4530/(16 Grades)/50HZ
Spindle Taper  NT40
Spindle Rated power  5HP
Tilt angle Forward and backward  ±45°(±0° optional)
Tilt angel left and right  ±90°
Dimension 1500*1700*2150mm
Net weight  1750kgs




Standard Accessories:

1. Step speed milling head

2. Way cover

3. Working light

4. Tool and toolbox



Optional Accessories:

1. Milling chuck

2. Clamping kit

3. 6 Vise

4. Coolant system

5. X/Y Axis power feed

6. Elevator motor

7. Two axis DRO /Three axis DRO

8. Mechanic Feed

9. Variable speed milling head

10. Inverter speed milling head

11. NT30/NT40 Power feed



FAQ

Q: Can we start with small quantity ?What's the MOQ?
A: We can accept orders with any quantity. The MOQ is 1 unit.

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?
A: 30% in advance.and the rest payment should pay before delivery.


Q: What's your warranty terms?

A: We will supply a replacement for parts that prove to be defective for a period of 12 months, starting on the machine’s bill of lading date. Extended warranty is available at the time of purchase. Please contact your Joint sales representative for details.


Q: How can I get a quotation?
A: Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone.
