| Table Size: | 900*700mm | Max Drilling Diameter Range: | 2.5-35mm |
|---|---|---|---|
| X/Y/Z Axis Travel: | 800/600/900mm | Max Spindle Rotation Speed: | 7000rpm |
| Spindle Motor: | 7.5-11kw | Max Load Weight Of Table: | 600kg |
| Machine Weight: | 5000kgs | Dimension: | 4700*3200*2200mm |
| High Light: | 800mm CNC Boring Machine,7000rpm Deep Hole Gun Drilling Machine,Servo Deep Hole Gun Drilling Machine |
||

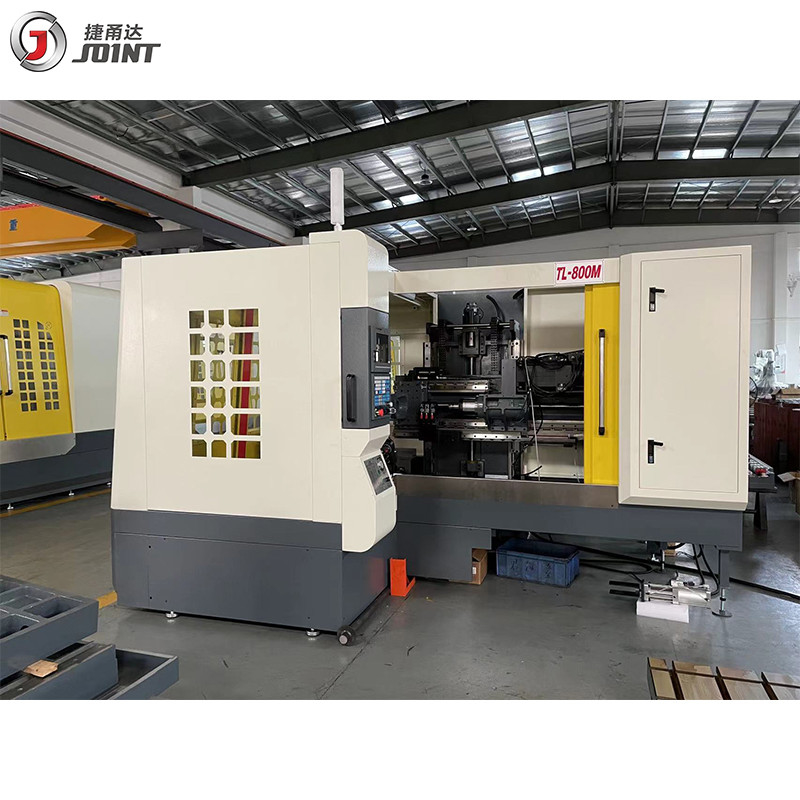

Drilling Depth 800 CNC Boring Machine Deep Hole Gun Drilling Machine Tl-800
1. Intergrated base structure,
2. reasonable layout, mold and covenient aeesmbly and disassembly,
3. wide application.
Specification:
| Model | TL-880 |
| Number of drill spindle | Single axis |
| Innder diameter of drilling | 2.5-30mm |
| Max depth of drilling | 800mm |
| Table size | 900*700mm |
| X axis travel | 800mm |
| Y axis travel | 600mm |
| Z axis travel | 900mm |
| Drilling cutting feed rate | 10-250mm |
| Max spindle rotation speed | 7000rpm |
| Spindle motor | AC SERVO 7.5 |
| X aixs movement motor | AC Servo 2.0 |
| Y axis movement motor | AC Servo 2.0 |
| Z axis movement motor | AC Servo 1.5 |
| Pressure of cutting pressure pump | 80 kgf/cm2 |
| Capacity of cutting oil tank | 600 |
| Oil output of hydraulic pump | 6-60 |
| Max load weight of table | 5000kgs |
| Machine weight | 6500kgs |
| Machine power | 6500kgs |
| Dimension | 4700*3300*2200mm |
Application Industry:
Overview:
Package:
1. Our wooden pallet (wooden case) would fumigate and can get fumigation certificate.
2. Our package will be very careful for the parts, accessories for the machine.
Every part, accessory that need to be removed from machine, we will use pearl cotton and transparent film to pack them.
And make a note of them.
