| Name: | VTC600H | Travel: | 600*400*300mm |
|---|---|---|---|
| Speed Rotation Speed: | 20000Rpm | Spindle Motor: | 2.2/3.7kw |
| Net Weight: | 2800kgs | Table Size: | 700*400mm |
| Rapid Feed: | 48*48*48m/min | Max Load Of Table: | 250kg |
| High Light: | drilling and tapping center,cnc drilling tapping center |
||

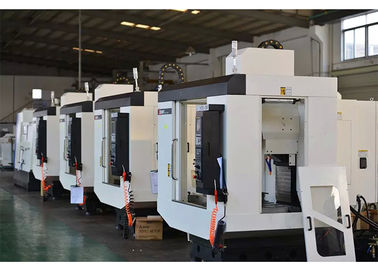

20000RPM Spindle High Speed CNC Drilling And Tapping Machine Travel 600*400*300mm
Such high speed 3 axis cnc tapping center hasfollowing features:
1. the foundation, column, main spindle box, cross sliding table, worktable and other parts were designed with high strength casting technology.
2. the inner metallographic structure is very steady.
3. the casting parts show rational geometry composition through machine tool kinetics and finite element analysis.
4. the basic parts have high steel nature by collocating with the reinforcing rib.
5. with the wide foundation, box-shaped cavity column, broaden & lengthening sliding base and advanced design of mechanics of materials, the weight capacity can be ensured.
6. High speed and high precision spindle, max. can be 20000rpm:
7. CE Standard and CE Certificate;
Product features:
1. The main parts of the fuselage are cast with high quality cast iron.
2. the internal muscles and bones are strengthened, all of them are treated by tempering.
3. and the finite element analysis is carried out by special design software.
4. It has the characteristics of high strength, good stability, and not easy to deform
5. Ensure the rigidity of the whole machine and the accuracy stability of long-term use.
Standard accessories
Turret tool magezine Automatic lubrication system
Cooling system Full splash guard
Pneumatic system Stainless syeel protection draw plate
Lighting system System:SIEMENS GSK FANUC (optional)
Three-color alarm lamp Fixed bolt
Optional accessories
Air condition Cool-heat exchanger
Workpiece inspection Tool detection
Forth axis
Raoid feed speed:48/48/48 m/min
Specification
| Model | Unit | VTC600H | ||
| Working table | Table size | mm | 700*400 | |
| Max.Loaded of table | kg | 250 | ||
| T slot(quantity-size-gap) | pcs－mm-mm | 3-18-125 | ||
| Distance between spindle and table | mm | 155-455 | ||
| 3 axis travel | X axis | mm | 600 | |
| Y axis | mm | 400 | ||
| Z axis | mm | 300 | ||
| Positioning accuracy | X axis | mm | 0.005 | |
| Y axis | mm | 0.005 | ||
| Z axis | mm | 0.005 | ||
| Repeated positioning accuracy | X axis | mm | 0.005 | |
| Y axis | mm | 0.005 | ||
| Z axis | mm | 0.005 | ||
| Spindle | Spindle rotation speed | rpm | 20000 | |
| Spindle taper | BT30 | |||
| Tool | Tool handle model | BT30 | ||
| Blind rivet model | BT30 45° | |||
| Rapid feed | X axis | mm/min | 48000 | |
| Y axis | mm/min | 48000 | ||
| Z axis | mm/min | 48000 | ||
| Cutting feed | X,Y,Z axis | mm/min | 8000 | |
| Tool magazine | ATC | Size | tools | 16T |
| Too changing time (T-T) | sec | 2.5 | ||
| Max.Size of tool | Near/Interval mm | 80/150 | ||
| Max.weight of tool | Kg | 3 | ||
| Motor | Max. Spindle motor | Motor Kw | 3.7-5.5 | |
| X,Y,Z axis | Power Kw/Rated torque Nm | 1.5/42 | ||
| Total capacity of electric | KVA | 10 | ||
| Weight of machine |
Kg |
2950 | ||
| Dimension | mm | 1850*2315*2375 | ||
