|Table Size:||800*400mm||Model Type:||CNC EDM|
|Eletrode Head:||380mm||Max. Load Of Eletrode Head:||150kgs|
|Max Load Of Table:||1500kg||Net Weight:||1740kg|
cnc electric discharge machine,
cnc sparking machine

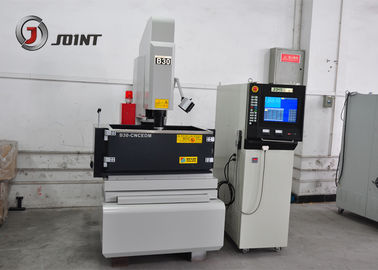

Precision Spark Erosion ZNC CNC EDM Die Sinking Machine for mould processing CNC 540
1.Various machining ways that can suit different customer requirements.
2.Bottom fine function - When machining reached desired depth.
3. Automatic compute, mesh and adjustment - For generally machining
4. For depth remain unchanged, best surface finishing effect is provided.
5. High jump function - Deep machining can be set at the function menu.
6.various sizes of table:three standard sizes and much more amounts of size just as your requirement
1. instant, genuine distance control electrode, work piece and electrode can be set for optimal gap.
2.Electrode withdraw from deep hole of work piece, help to discharge all carbon residue during machining
3.X Y axis Lock function:Can prevent the continue processing when X Y move and the workpiece be damaged
4.prevent carbon deposition that would cause twice sparking,.
5.Z axis Lock function:Convenient discharge to revise mode and using with shaking ( translation) apparatus
6. For depth remain unchanged, best surface finishing effect is provided.
1. our inquiry will be replied within 24 hours.
2. Well-trained workers and more than 10 years experience.
3. Directly from factory to save your money.
4. Being efficient:3-7 days for samples and 10-35 days for quantity orders.
5. Small orders are acceptable for quick delivery and to help you reduce stock cost.
6. Custom fabrication according to your drawings ,samples or designs.
|Size of oil container||
|X axis travel||500mm|
|Y axis travel||400MM|
|Z axis travel||200mm|
|Max distance from the electrode head to table||580mm|
|Max load of electrode head||150kg|
|Max load of table||1500kg|
|Filter container cube||460L|
|Filter container net weight||
Electric cabinet specification
|Control mode and axis No.||
NC with close circuit/XY, and Z axis control
|Min setting value||0.005mm|
|Max setting value||9999.995mm|
|Coordination system||INC ABS|
|Control system||Industrial PC|
|Moving velocity of controller||0.005mm per unit*1, *5, *10|
|Procedure in store||0-999 groups|
|Max current for processing||50/75/100A|
|Input rated power||5/6/10KVA|
|Max cutting processing speed||360/56/700mm²/min|
|Consumption of electrode head||＜0.2%|
|Best surface rough||0.25|
Tool and tool box
150*350mm magnet chuck
3 axis DRO
