|Table Travel:||700*400*300mm||Distance Between Spindle And Table:||155-455mm|
|Spindle Motor:||3.7kw||Max Length:||200mm|

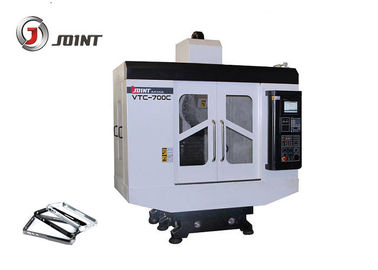

High speed high efficiency cnc drilling and taping machine center VTC500
1. The vtc700H drilling center machine tool adopts famous brand system control (Mitsubishi or Fonarco)
2. its supporting servo driver and motor to realize three axis linkage.
3. Use automatic tool changing device, used in drilling and processing.
4. Applicantion for milling, boring, reaming, tapping and other processing.
5. Drilling center is for processing holes in top surface of small and medium-sized box parts or holes in plane of plate parts in a single piece or batch production.
6. In addition to the full function of NC drilling machine, it also has the function of 3 axis guide way.
1. Three axis are linear gudie ways, and the rapid feed is 48m/min.
2. High rigidity machine body structure. maintain the machine' stability.
3. key parts are imported from world top brands to ensure high quality and high precision of the products.
4. This machine is processing small sized multiple hole precise parts and has advantages on high speed runnning, fast and high precision small hole machining and fast tool changing.
1. Japanese NSK precision bearing and Taiwan silver high precision ball screw are used to ensure the high precision of machine tool.
2. The main parts of the fuselage are cast with high quality cast iron.
3. High strength, good stability, not easy to deform.
4. Box spindle head structure
5. Internal strengthening of muscles and bones
6. P4 super precision beveled ball bearing
|Working table||Table size||mm||800*400|
|Max.Loaded of table||kg||250|
|Distance between spindle and table||mm||155-455|
|3 axis travel||X axis||mm||700|
|Positioning accuracy||X axis||mm||0.006|
|Repeated positioning accuracy||X axis||mm||0.005|
|Spindle||Spindle rotation speed||rpm||15000/20000/24000|
|Tool||Tool handle model||BT30|
|Blind rivet model||BT30 45°|
|Rapid feed||X axis||mm/min||48000|
|Cutting feed||X,Y,Z axis||mm/min||8000|
|Too changing time (T-T)||sec||2.5|
|Max.Size of tool||Near/Interval mm||80/150|
|Max.weight of tool||Kg||3|
|Motor||Max. Spindle motor||Motor Kw||3.7|
|X,Y,Z axis||Power Kw/Rated torque Nm||1.5/42|
|Total capacity of electric||KVA||10|
|Weight of machine||
1. Oil water seperator
2. Spindle oil coolant
3. rotary table
4. air gun
