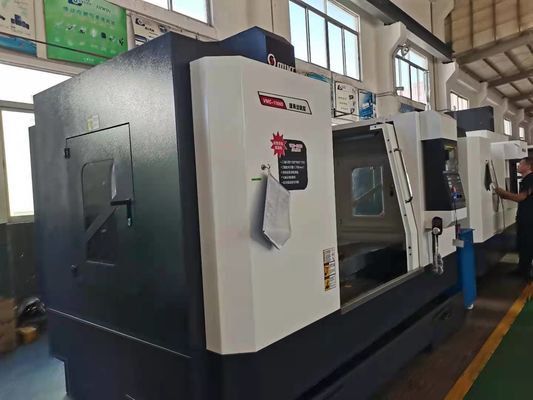

VMC 5 Axis 11KW CNC Vertical Milling Machine VMC1160DL For Molds

VMC 5 Axis 11KW CNC Vertical Milling Machine VMC1160DL For Molds
VMC 5 Axis 11KW CNC Vertical Milling Machine VMC1160DL For Molds VMC 5 Axis 11KW CNC Vertical Milling Machine VMC1160DL For Molds VMC 5 Axis 11KW CNC Vertical Milling Machine VMC1160DL For Molds

Large Image :  VMC 5 Axis 11KW CNC Vertical Milling Machine VMC1160DL For Molds

Product Details:
Place of Origin: China
Brand Name: JOINT
Certification: CE/ISO/SGS
Model Number: VMC1160DL
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Usd30000.00-Usd60000.00/set
Packaging Details: Container
Delivery Time: 30 work days
Payment Terms: D/P, T/T, D/A, L/C
Supply Ability: 2000set / year
Detailed Product Description
Voltage: 220V/380V/415V/Other Condition: New
After-sales Service Provided: Possible Weight: 6200
Warranty: One Year / Two Year /Other Power(w): 11KW
Dimension(l*w*h): 3200*2750*2950mm Spindle Speed: 8000RPM/10000RPM
Spindle Taper: BT50 Table Size: 1200*600mm
Product Name: Vertical Machine Center Color: Standard
Machine Type: CNC Control System: Fanuc /Siemens /Mitsubishi /Gsk Contoller
Positioning Accuracy: 0.008 Application: Metal Machining /Making An Molds
Axis Number: 3 Axis /4 Axis /5 Axis
High Light:

8000rpm Vertical Milling Machine

,

VMC CNC Vertical Milling Machine

,

Molds 5 Axis Cnc Machine

5 axis CNC Vertical Milling Machine VMC1160DL For Making molds





Feature :



1.L series X/Y axis ball linear way , Z axis box way



2.High rigidity machine structure can meet the heavy cutting requirement when fast running



3. The coupling , spindle bearing ,spindle ,ball screw ,linear way ,tool magazine ,unclamping cylinder and other key parts are imported



    from top-level brands in Germany ,Japan and Taiwan to ensure high quality and high precision of products



4. Complete model from VMC650L-1890L, Suitable for small to medium metal parts processing



5.Modular configuration can provide customized options to meet different processing need, with coolant through spindle ,



   ring spray  type spindle ,8000rpm belt type spindle ,10000-15000rpm direct connection spindle



6. This VMC is mainly designed for parts processing ,can speed up the feed speed and meet the high rigidity cutting  requirement .





Specification Of Vertical machine center



Model Unit VMC1160DL
Travel X axis mm 1100
Y axis mm 600
Z axis mm 700
Distance between spindle and table mm 130-730
Working table Table size mm 1200*600
Max. Load of table Kg 800
T slot Pcs-mm-mm 5-18-100
Positioning accuracy X/Y/Z axis mm 0.008/0.008/0.008
Spindle Spindle rotation speed Rpm 8000
Spindle taper   BT40
Diameter mm Φ150
Rivet model   BT40 45°
Rapid feed X/Y/Z axis m/min 24/24/18
Cutting feed X/Y/Z axis m/min 10
Tool magazine Umbrella type Size Tools 20
Too changing time (T-T) Sec 6
Max. diameter/ length/weight of tool mm 100/150/8
Max tool diameter (no tool adjacent) mm 180
Arm type Size Tools 24
Tool changing time (T-T) sec 2.8s
Max. diameter/ /length/weight of tool mm 80/200/8
Max tool diameter (no tool adjacent) mm 150
Weight of machine

Kg



6500
Dimension mm 3200*2750*2950mm



VMC 5 Axis 11KW CNC Vertical Milling Machine VMC1160DL For Molds 0



Standard Accessories:



1. 4 axis rotary table and tail stock (depends on the physical truth)



2. Fanuc/Mitsubishi Controller system



3. Full enclosed cover



4. Spindle encoder position system



5. Three axis inner encoder feedback system



6. Auto lubrication system



7. Pneumatic system



8. RS 232 Interface



9. Operation unit



10. Working light



11. Tool and tool box



Optional accessories:



1. Siemens controller or other controller system



2. Spindle oil coolant



3. Umbrella type tool magazine



4. Arm type tool magazine



5. Screw type auto conveyor



6. Chain type tool magazine



7. Ring spray spindle



8. 5 axis rotary table





Machine Details





Fanuc Controller

VMC 5 Axis 11KW CNC Vertical Milling Machine VMC1160DL For Molds 1



24 tool ATC

VMC 5 Axis 11KW CNC Vertical Milling Machine VMC1160DL For Molds 2



4 axis rotary table

VMC 5 Axis 11KW CNC Vertical Milling Machine VMC1160DL For Molds 3



Our Customer Factory

VMC 5 Axis 11KW CNC Vertical Milling Machine VMC1160DL For Molds 4
