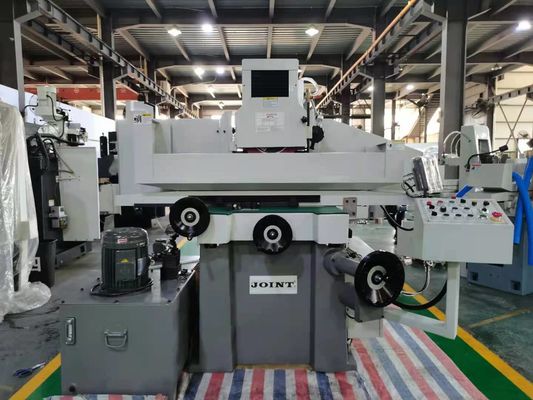

2800rpm 460*200mm Table Metal Surface Grinder Z Axis With Elevator

2800rpm 460*200mm Table Metal Surface Grinder Z Axis With Elevator
2800rpm 460*200mm Table Metal Surface Grinder Z Axis With Elevator 2800rpm 460*200mm Table Metal Surface Grinder Z Axis With Elevator

Large Image :  2800rpm 460*200mm Table Metal Surface Grinder Z Axis With Elevator

Product Details:

Place of Origin: CHINA
Brand Name: JOINT
Certification: ISO 9001:2015
Model Number: 250AHR

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: NEGOTIATION
Packaging Details: WOODEN PALLTES / WOODEN CASE
Delivery Time: NEGOTIATION
Payment Terms: TT/LC/DA/DP
Supply Ability: 1000 SETS/YEAR
Detailed Product Description
Table Size: 460*200mm Auto Vertical Feed: 0.002-0.02
Coolant Pump Motor: 0.12*2 Z Axis: With Elevating Motor
Dimension: 1800*1400*1775mm Grinding Wheel Size: F205*(6-20)*F31.75
High Light:

460*200mm Table Metal Surface Grinder

,

2800rpm Metal Surface Grinder

,

Elevator Z Axis Surface Grinder



460*200 table size F205*(6-20)*F31.75 Grinding wheel size longitudial and cross ward automatically, z axis with elevator



Product Details:



1. Durable, high precision and high quality. Imported high accuracy grinding head.



2. Hydraulic system ensure high precision of machine and high stability of operational.



3. High precision and corrosion resisting.



4. Our custom-made machines with competitive price and the excellent service have gained us a great reputation from domestic and foreign customers.



5. Suitable to grinding surface and complex form surface by form dressed whell.





2.Specification:



 Model 250AHR
 Table size 460*200mm
 Travel ( Longitude ) 540mm
 Travel ( Crossward ) 240mm
 Table side way Slide way
 Max.distance from spindle center to working table 460mm
 Auto crossward feed -
 Crossward feed of hand wheel ( 1Rev ) 4
 Crossward feed of hand wheel ( 1Div ) 0.02
 Auto vertical feed 0.002-0.02
 Vertical rapid moving feed -
 Vertical feed of hand wheel ( 1Rev ) 1/2*0.2(Microfeed)
 Vertical feed of hand wheel ( 1Div ) 0.005/0.01*0.001(Microfeed)
 Rotation speed 2800rpm
 Grinding wheel size Ø205*(6-20)*Ø31.75
 Spindle motor 2*2
 Hydraulic motor 1*4
 Crossward driven motor 0.05*4
 Vertical driven motor 0.5*4
 Coolant pump motor 0.12*2
 Dust-clean motor 0.5*2
 Dimension ( L*W*H ) 1800*1400*1775mm
 Net weight 1250kg



Our Services:



1. Technical support online service provided, question will be replied within 24 hours.



2. During warranty period, if the grinding machine is damaged by non-human reasons, we will replace the parts free of charge.



3. After the warranty, we charge only cost price for maintaining the grinding machines.



4. We have a professional after-sales service team who are ready to serve.
