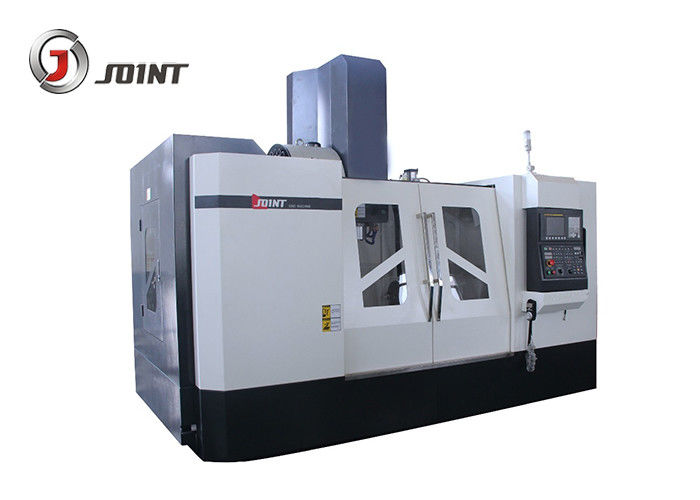

BT50 15KW Vertical CNC Machine Max Load 1500kg Big Travel VMC1580L
Product features:
1. The guide rail of X, Z, Y axis are use HIWIN/PMI's heavy load linear ball guide, has the advantages of fast speed, Eliminate intermittent creep, high rigidity, low friction, low noise , low temperature rise and so on.
2. The spindle unit of the machine tool is high speed, high accuracy, high rigidity, with large load carrying capacity of axial and radial, and the maximum speed of up to 8000rpm.
3. Guide rail and ball screw of X, Y, Z direction are all use protection device to ensure that the screw and the guide is clean and the accuracy and life of machine tool's transmission and movement.
4. The machine tool external protection of machine tool uses the full protection structure. It is convenient operation, safe and reliable, and nice shape.
5. The machine matched with 12 hats (standard) or 16 disc knife library (optional) supplied by Taiwan professional manufacturers.
6.The principle of human body engineering is used in machine tool operation system . The operating box is independent. It can be self-rotation and easy to operate.
Product application:
1. The VMC is suitable for the mechanical processing and mold making.
2. It can adapt to the processing requirement from rough machining to finish machining.
3. It can also finish many working procedures like milling,drilling,tapping,boring.etc.
Specification Of Vertical machine center VMC1580L
| Model | Unit | VMC-1580L | ||
| Travel | X axis | mm | 1500 | |
| Y axis | mm | 800 | ||
| Z axis | mm | 700 | ||
| Distance between spindle and table | mm | 130-830 | ||
| Working table | Table size | mm | 1700*800 | |
| Max. Load of table | Kg | 1500 | ||
| T slot | Pcs－mm-mm | 5-22-140 | ||
| Positioning accuracy | X/Y/Z axis | mm | 0.01/0.008/0.008 | |
| Repeated positioning accuracy | X/Y/Z axis | mm | 0.008/0.007/0.007 | |
| Spindle | Spindle rotation speed | Rpm | 8000 | |
| Spindle taper | BT50 | |||
| Diameter | mm | Φ155 | ||
| Rivet model | BT50 45° | |||
| Rapid feed | X/Y/Z axis | m/min | 36/36/30 | |
| Cutting feed | X/Y/Z axis | m/min | 10 | |
| Tool magazine | Umbrella type | Size | Tools | 20 |
| Too changing time (T-T) | Sec | 6 | ||
| Max. diameter/ length/weight of tool | mm | 135/200/15 | ||
| Max tool diameter (no tool adjacent) | mm | 185 | ||
| Arm type | Size | Tools | 24 | |
| Tool changing time (T-T) | sec | 3.5s | ||
| Max. diameter/ /length/weight of tool | mm | 110/200/15 | ||
| Max tool diameter (no tool adjacent) | mm | 200 | ||
| Total capacity of electric | KVA | 35 | ||
| Weight of machine |
Kg
|
12100 | ||
| Dimension | mm | 4300*3900*3300 | ||
Standard Accessories:
Fanuc/Mitsubishi Controller system
Full enclosed cover
Spindle encoder position system
Three axis inner encoder feedback system
Auto lubrication system
Pneumatic system
RS 232 Interface
Operation unit
Working light
Tool and tool box
Optional accessories:
Siemens controller or other controller system
Spindle oil coolant
Umbrella type tool magazine
Arm type tool magazine
Screw type auto conveyor
Chain type tool magazine
4 Axis rotary table
Ring spray spindle
