| Table: | 1370*330mm | X/Y/Z Travel: | 820*310*115mm |
|---|---|---|---|
| Knee Travel: | 370mm | Rated Power: | 5HP |
| Spindle Taper: | NT40 | Rapid Feed: | 5/5/5 M/min |
| High Light: | vertical knee type milling machine,vertical universal milling machine |
||

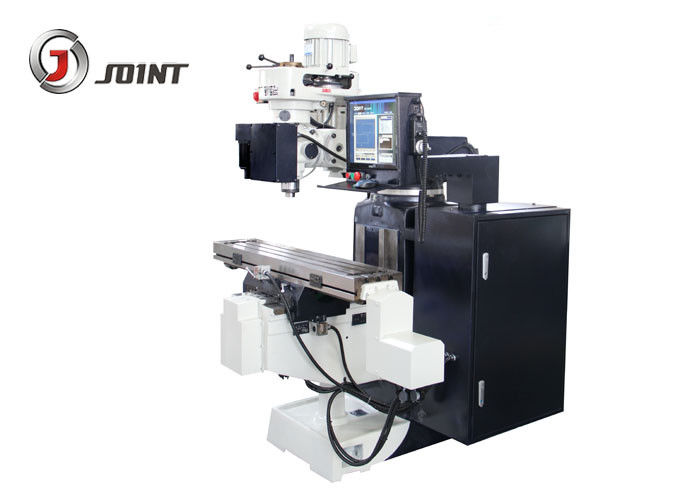

6KJ-B knee type NC intelligent mini cnc milling machine with factory price
1. Joint intelligent controller is designed to have more user friendly applications.
2. The configuration system of 6kj-b bed NC Milling Machine can choose the jyd400m system which is developed by oneself
3. With Z axes servo motor driving,
4. Implement program editing directly in numerical control system
5. the machine can realize Z axes auto control high precision processing.
Features:
1. X/Y/Z axes adopt ball screw.
2. make sure accurate positioning by pitch feedback.
3. X/Y/Z axes servo motor helps realize three axes auto control
4. The feed speed and processing accuracty.
Casting details
1. Cast iron with high quality
2. Internal strengthening of muscles and bones
3. drawing temper
4. High strength, good stability, not easy to deform
5. Rigidity and accuracy.
| Model | 6KJ-B |
| Table size | 1370*330 |
| T-slot(W*N*D) | 16*3*65 |
| X axis travel | 820mm |
| Y axis travel | 310mm |
| Z axis travel | 115mm |
| Knee Travel | 370mm |
| Max distance from the spindle nose to table | 0-400mm |
| Spindle rotation speed | 80-4530/(16 grades) |
| Rapid feed (x/y/z) | 5/5/5 m/min |
| Cutting feed (x/y/z) | 2 m/min |
| Spindle Taper | NT40 |
| Spindle Rated power | 5HP |
| Dimension | 2100*1750*2450mm |
| Net weight | 1800kgs |
