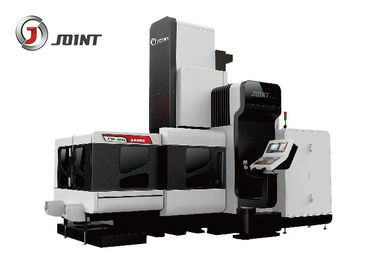

5 Face Industrial Bridge Type Machining Center Efficient Cutting Yield And Heavy Load

5 Face Industrial Bridge Type Machining Center Efficient Cutting Yield And Heavy Load
5 Face Industrial Bridge Type Machining Center Efficient Cutting Yield And Heavy Load 5 Face Industrial Bridge Type Machining Center Efficient Cutting Yield And Heavy Load

Large Image :  5 Face Industrial Bridge Type Machining Center Efficient Cutting Yield And Heavy Load

Product Details:
Place of Origin: CHINA
Brand Name: JOINT
Certification: ISO 9001:2015
Model Number: BTMC1215
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: NEGOTIATION
Packaging Details: WOODEN PALLTES / WOODEN CASE
Delivery Time: NEGOTIATION
Payment Terms: TT/LC/DA/DP
Supply Ability: 1000 SETS/YEAR
Detailed Product Description
Name: Double Column Machine Center Model: BTMC1215
Table Size: 900*1500mm Travel: 1500*1200*800mm
Spindle Rotation Speed: 8000rpm/ 12000rpm / 15000rpm Spindle Taper: BT50/ BT40
Spindle Motor: 15-18.5kw Load Weight: 2400kgs
High Light:

double column cnc milling machines

,

gantry type milling machine



X Axis Travel 1500mm BT40 Spindle 12000rpm High Speed Double Column Machine Center For Making An Mould BTMC1215



Product Feature

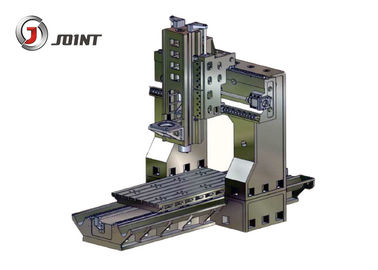

A gantry frame structure is adopted with cast iron bodies,



Gantry fram consists of bed ,movable table ,left and right  columns  ,Top beam ,Cross rail, Horizontal saddle and milling head,



There are three feeding axis ,X aixs for travel of working table, Y axis for horizontal travel of saddle and Z axis for vertical travel of ram,



Simultaneous control of each two or three axis can be achieved .





Wide range of application



1. Basing on its super rigid and stable structure ,big machining capacities,

    efficient cutting yield ,heavy table load capacity ,it has a wide application .



2. Engineering and general machining



3. Motor ,pump ,valve and bearing



4. Turbine, wind mill ,power generator etc





Specification of cnc Gantry type machine center



Model BTMC1215
Table size  900*1500mm
X aixs travel  1500mm
Y axis travel  1200mm
Z axis travel 800mm
Gantry width  1200mm
Distance between spindle and table  120-920mm
Spindle rotation speed  8000rpm BT40-10000/12000/15000Rpm optional)
Spindle taper  BT50 (BT40 Direct connection spindle )
Spindle Motor  15-18.5kw
Work table Tslot  7-22*125
X axis rapid feed  18
Y axis rapid feed  18
Z axis rapid feed  18
Cutting feed  8
Positioning accuracy  0.01mm/mIN
Min.set moving unit  0.001mm
Net weight  18000kgs
Max load of table  13000kgs
Dimension 5000*2800*3600mm





5 Face Industrial Bridge Type Machining Center Efficient Cutting Yield And Heavy Load 0

Standard Configuration



1. FANUC System

2. Heat exchaner in electric control cabinet
3. Water tank cooling device

4. Manual pulse generator
5. Automatic lubrication device

6. Workong lamp
7. Outer protective cover

8. Three-color warning lamp
9. Spindle blowing device

10. RS-232 standard output interface
11. Handle air gun

12. LCD
13. Water gun

14. Tool and tool box
15. Electric control cabinet

16. Operation manual
17. Transformer

Optional Configuration


1. Mitsubishi system
2. ATC (Manipulator)
3. Spindle oil cooling device
4. Water through spindle center device
5. Disk type oil-water separator
6. CNC rotation worktable (the 4th axis)
7. Air conditioner in electric control cabinet
8. fully-enclosed optical scale detecting system
9. Automatic tool length measuting system
10. Manual / Semi*autoatic right-angle head
12. ZF gear box
